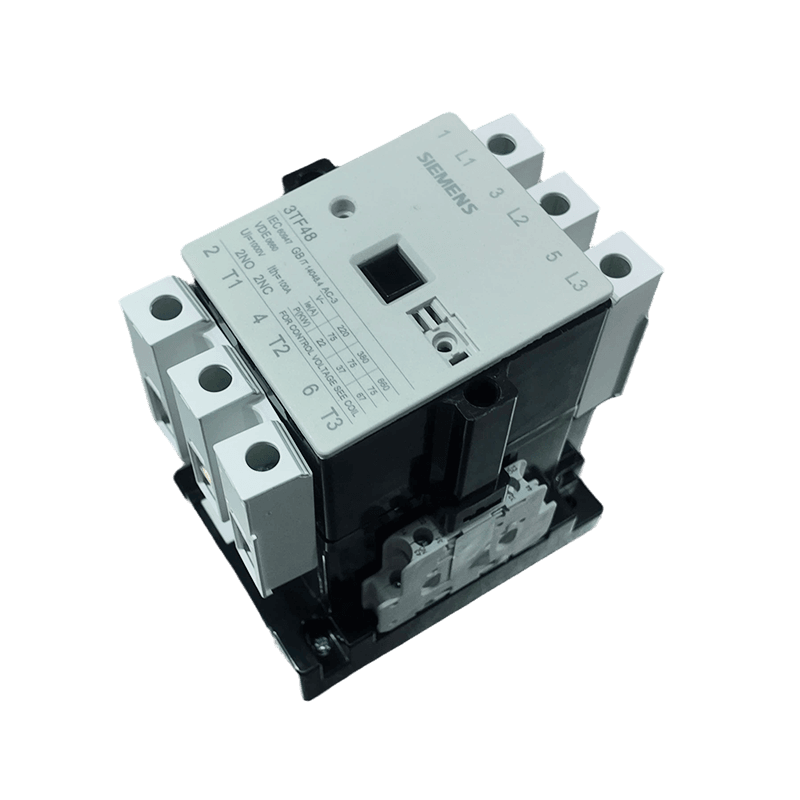

Cum AC contactor in potentia potest, spiraculum internus campum magneticum generabit, nucleum ferrum movens et nucleum ferreum stationarium simul attrahendi, systema contactum ad contactum contactum stationarium et circa ambitum gerens. Post angulum vim amittit, suctio vis evanescit, et reset fons nucleum ferreum movens impellet, contactus separandi et ambitum frangendi causans.
-

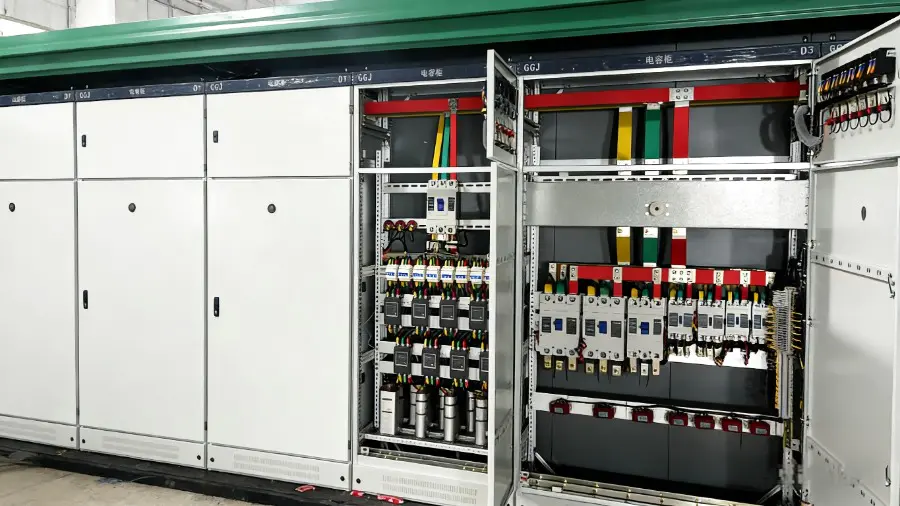

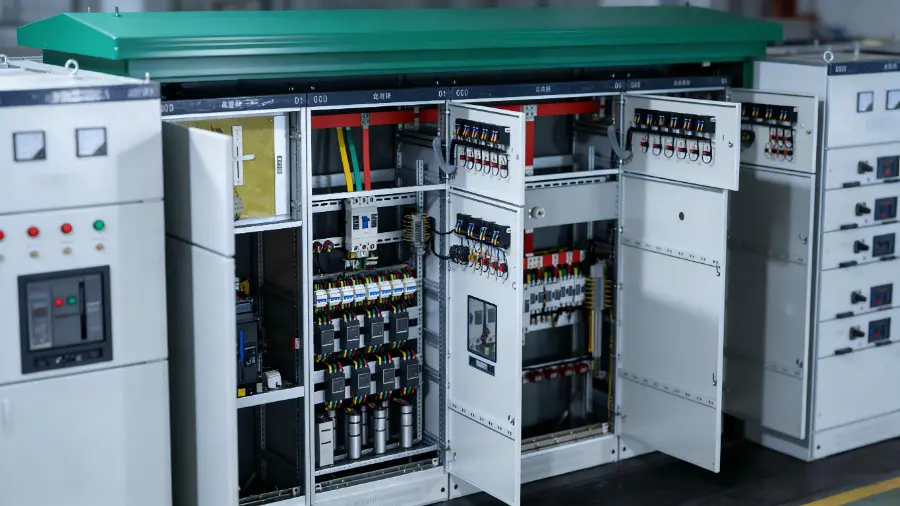

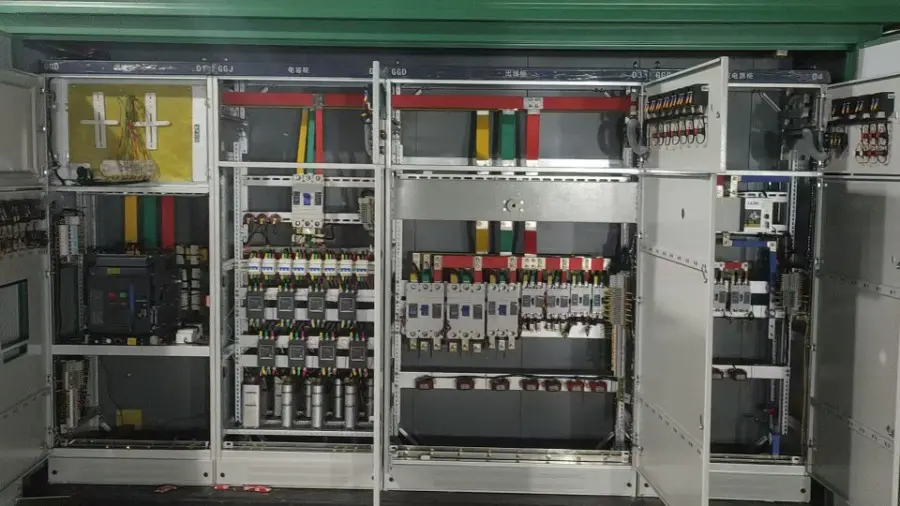

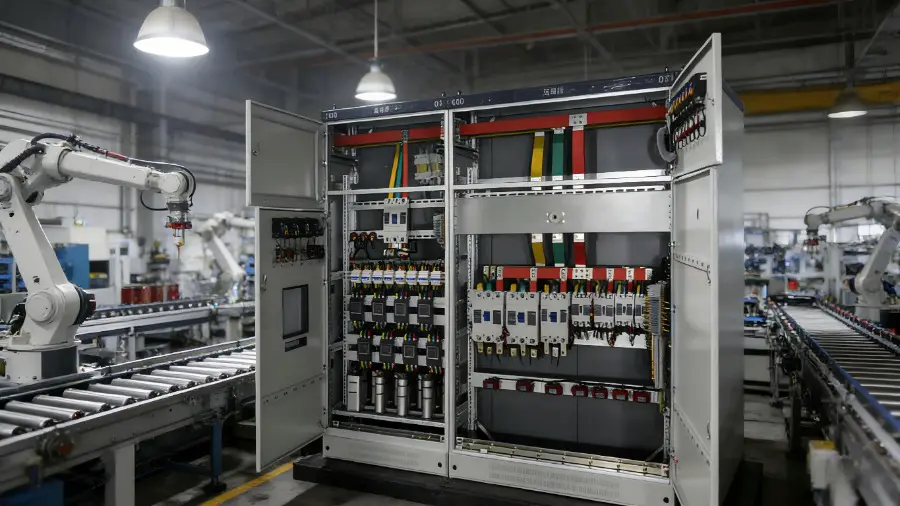

Project Cases
-
Project Cases
-
Project Cases
-
Project Cases
-
Project Cases

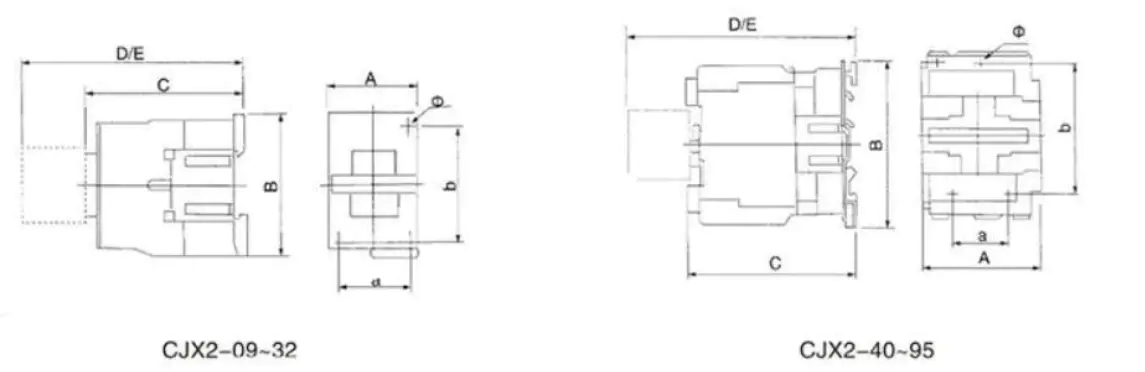

| EXEMPLUM | A | B | C | D | E | a | b | Φ |
| D09~12 | 47 | 76 | 82 | 11 | 133 | 34/35 | 50/60 | 4.5 |
| D18 | 47 | 76 | 87 | 118 | 138 | 34/35 | 50/60 | 4.5 |
| D25 | 57 | 86 | 95 | 126 | 146 | 40 | 48 | 4.5 |
| D32 | 57 | 86 | 100 | 131 | 151 | 40 | 48 | 4.5 |
| D40~65 | 77 | 129 | 116 | 145 | 165 | 40 | 100/110 | 6.5 |
| D80~95 | 87 | 129 | 127 | 175 | 195 | 40 | 100/110 | 6.5 |
| Exemplar Type | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 | |
| Rated current opus (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| Tres tempus motricium AC－3 level (kw) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | - | - | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | - | - | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| RatedheatingcurrentIth (A) | 20 | 20 | 30 | 32 | 40 | 50 | 60 | 80 | 125 | 125 | |
| Electrical lifespan ((X) circuitus) | AC3 | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
| AC4 | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
| Mechanica resta ((X) circuitus) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
| Contactus exemplar | 3P NO | 3P NC NO | |||||||||
| Model | Ratum est vena (A) | Principalis contactus | Contactus auxiliaris | Una-phase onus virtutis (kW) | Tres tempus onus potentiae (kW) |
| CJX2-0910 | 9A | 3NO | 1NO | 1.8KW | 3.5KW |
| CJX2-0901 | 9A | 3NO | 1NC | 1.8KW | 3.5KW |
| CJX2-1210 | 12A | 3NO | 1NO | 2.5KW | 5KW |
| CJX2-1201 | 12A | 3NO | 1NC | 2.5KW | 5KW |
| CJX2-1810 | 18A | 3NO | 1NO | 3.5KW | 7.5KW |
| CJX2-1801 | 18A | 3NO | 1NC | 3.5KW | 7.5KW |
| CJX2-2510 | 25A | 3NO | 1NO | 5KW | 8.5KW |
| CJX2-2501 | 25A | 3NO | 1NC | 5KW | 8.5KW |
| CJX2-3210 | 32A | 3NO | 1NO | 6KW | 12KW |
| CJX2-3201 | 32A | 3NO | 1NC | 6KW | 12KW |
| CJX2-4011 | 40A | 3NO | 1NO 1NC | 8KW | 18.5KW |
| CJX2-5011 | 50A | 3NO | 1NO 1NC | 10KW | 24KW |
| CJX2-6511 | 65A | 3NO | 1NO 1NC | 12.5KW | 28KW |
| CJX2-8011 | 80A | 3NO | 1NO 1NC | 15.5KW | 37KW |
| CJX2-9511 | 95A | 3NO | 1NO 1NC | 18.5KW | 44KW |
