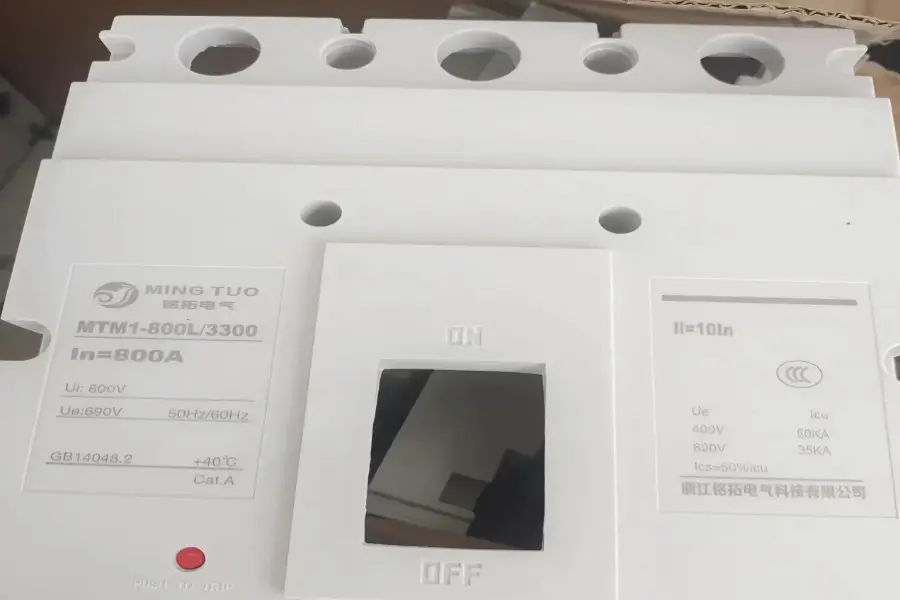

Descriptio:
Series MT-M1 casuum formatorum ambitus ruptor (MCCB) machinatus est ut in AC 50Hz systemata distribuendi potestas certa tutelae et temperantiae tradatur, cum intentionibus operationalibus usque ad 400V aestimatis et excursus ab 63A ad 1600A vagantibus. Disposita ad tutelam circuitus et apparatum connexum, efficaciter MT-M1 obloquitur onera, ambitus breves et condiciones minoris volendi, dum etiam inceptas motores occasionales administrandi sine ullo discrimine systematis integritatis.
Foedus adhuc robustus, haec MCCB notat superiorem facultatem frangendi et arcus minimas, diuturnum tempus operandi fidem praestandi. Eius consilium modulari tam verticalem quam horizontalem inscensum permittit, praebens flexibilem institutionem in tabulis electricis strictis vel centris motoriis imperium. Plene certificati IEC 60947-2 et GB14048.2, MT-M1 qualitas internationalis signa et salus obviat.
 |  |
Applicationes:
MT-M1 MCCB praesidium firmum praebet in variis systematibus electricis, inter quas:
Potentia principalis et secundae distribution tabulis
Motricium imperium centra et tabulata starter
Generator tutela circuitus
Industria et fabricandis machinationibus
Commercial and residentiales electrica officinae
Solaris et venti navitas systemata integratio
 |  |
 |  |
 | |
Principium operans: Principium seriei MT-M1 MCCB est monitorem circuii currentis et, in eventu oneris, ambitus brevitatis vel terrae culpae, automatice determinari et mechanismum felis cito ambitum interrumpere. Etiam arcum per systema exstinguentem tuto exstinguit, inde culpam certo intercludit et ambitum et apparatum munit..

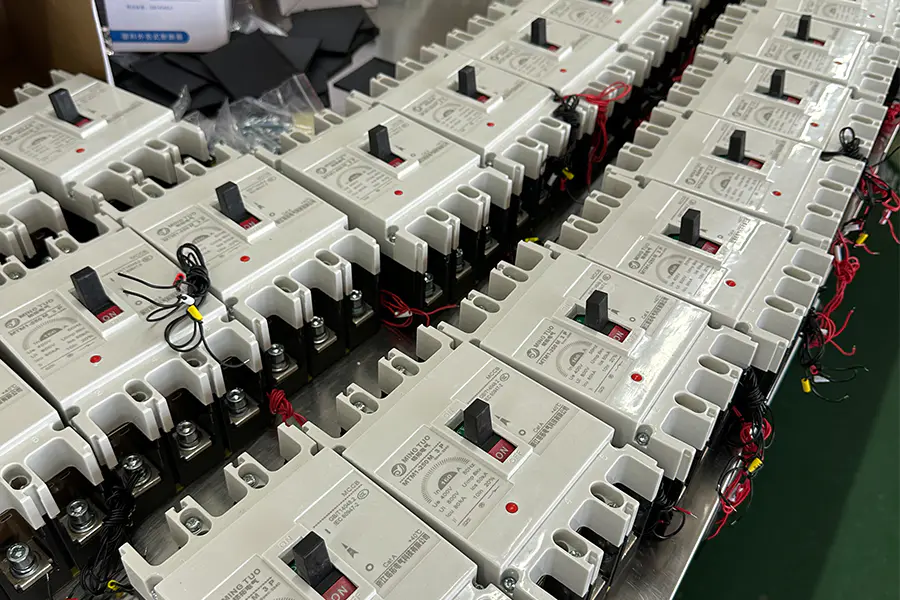

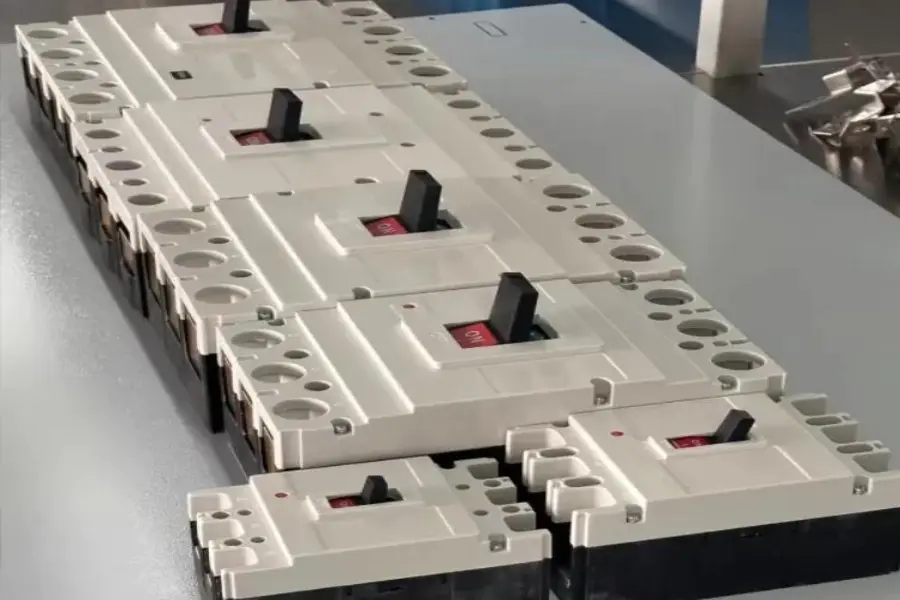

MCCB Assemble
MCCB Assemble
MCCB Temperature Rise Test Bench
MCCB Temperature Rise Test Bench
MCCB Temperature Rise Test Bench
MCCB Temperature Rise Test Bench
MCCB Temperature Rise Test Bench
MCCB Instantaneous Test

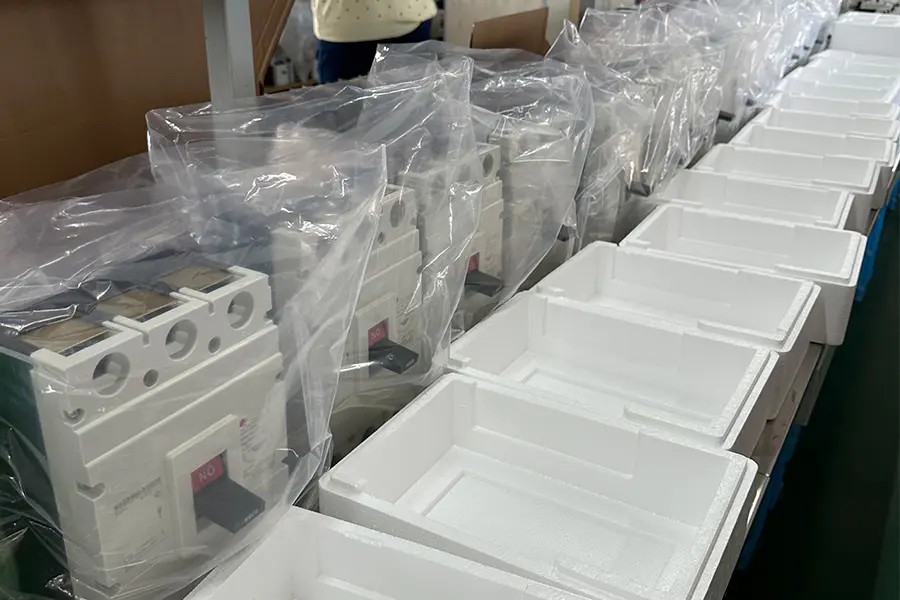

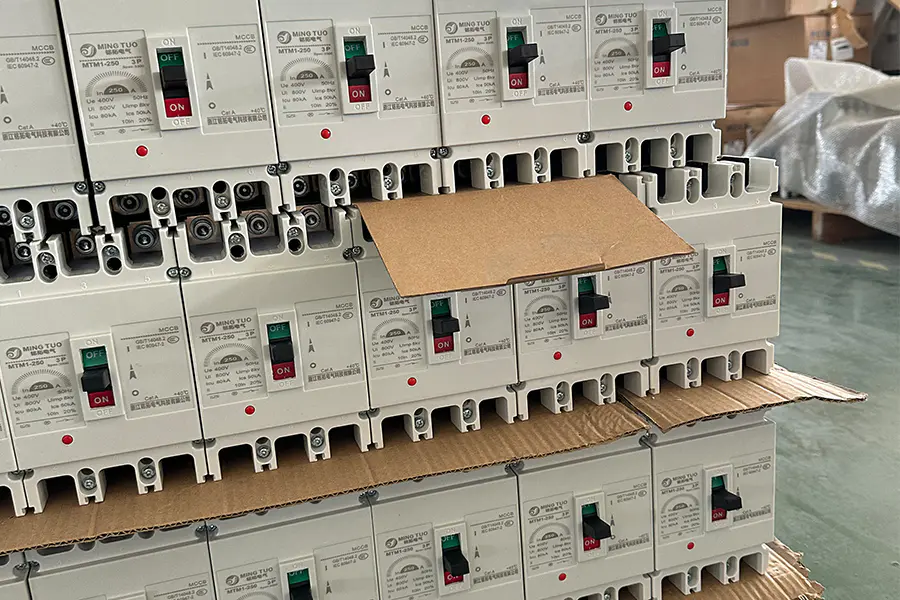

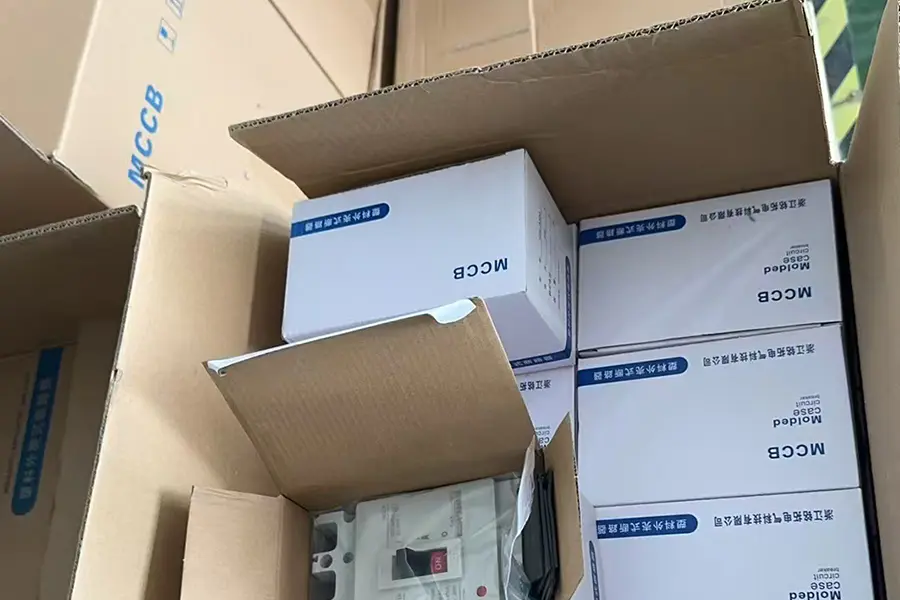

Ad translationem salutem obtinendam, fructus electrica nostri exportantur in cratibus ligneis aucti. Crates caloris curationem subeunt et ISPM-15 ferunt signum, ut celeris consuetudines alvi ferant. In consilio basi elevato operationem forklift faciliorem facit, cum collisio-absorbens ligamen internum efficit ut fructus integros perveniant. Crates exteriores omnes perspicue intitulati sunt et logisticis internationalibus signis obtemperant.
Box-typesubstation ACB VCB MCCB
Power transmission successful
Photovoltaic Grid-Connected Cabinet Utilising ACB and MCCB
Box-typesubstation ACB VCB MCCB
Box-typesubstation ACB VCB MCCB
HighandLowVoltageSwitchgearACBMCCBVCB
Box-typesubstationUtilisingourVCB

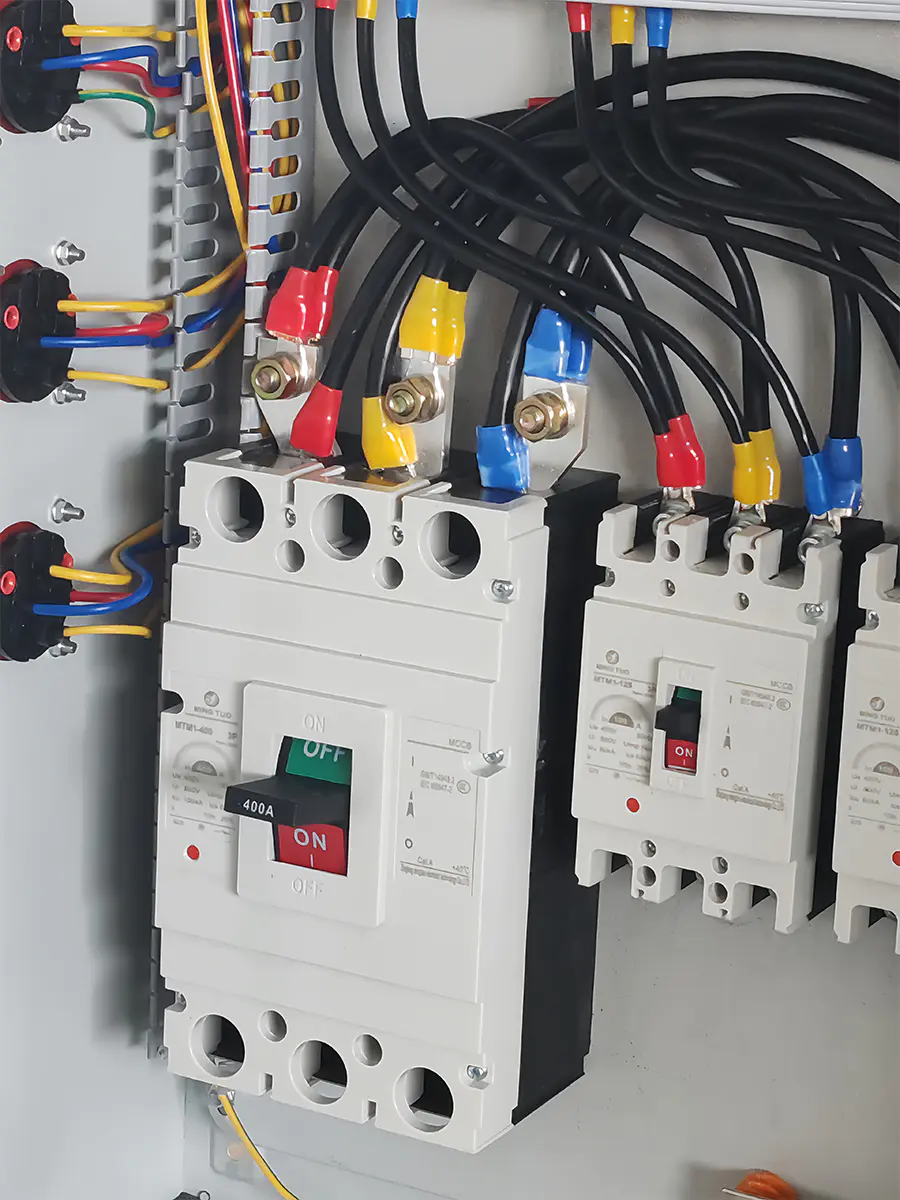

b64cb82cb063b5509f2ea787600334d2
3c16a183fdcdba56f310533eba28cb60
| Type | polus | Dimensiones externae | Installation Dimensiones (mm) | Dimensiones tergo Panel Connexionis (mm) | |||||||||||
| L | L1 | W | H | H1 | H2 | a | b | d | a1 | b1 | d1 | H3 | H4 | ||
| MTM1-63L | 3 | 135 | 21 | 76 | 89.5 | 72 | 18 | 25 | 117 | 3.5 | 25 | 117 | 18 | 52 | 75 |
| 4 | 103 | ||||||||||||||
| MTM1-63M | 3 | 76 | 99 | 81 | 28 | ||||||||||
| 4 | 103 | ||||||||||||||
| MTM1-125L | 2 | 150 | 51 | 65 | 87 | 68 | 24 | … | 129 | 4.5 | 30 | 132 | 22 | 65 | 100 |
| 3 | 92 | 30 | |||||||||||||
| 4 | 121 | … | |||||||||||||
| MTM1-125M,H | 2 | 65 | 103.5 | 85 | 23 | … | |||||||||
| 3 | 92 | 30 | |||||||||||||
| 4 | 121 | … | |||||||||||||
| MTM1-250L | 2 | 164 | 64 | 75 | 108 | 87 | 24 | … | 126 | 5.5 | 35 | 144 | 24 | 70 | 110 |
| 3 | 107 | 35 | |||||||||||||
| 4 | 142 | … | |||||||||||||
| MTM1-250M,H | 2 | 75 | 124.5 | 104 | 24 | … | |||||||||
| 3 | 107 | 35 | |||||||||||||
| 4 | 142 | … | |||||||||||||
| MTM1-400M, H | 3 | 257 | 105 | 150 | 153 | 106 | 38 | 44 | 194 | 7 | 48 | 224 | 32 | 48.5 | 108.5 |
| 4 | 197 | Ius reliquit XLIV L " | |||||||||||||
| MTM1-630M,H | 3 | 270 | 105 | 182 | 157 | 111 | 43 | 58 | 200 | 7 | 58 | 234 | 40 | 70 | 120 |
| 4 | 240 | ||||||||||||||
| MTM1-800M,H | 3 | 280 | 105 | 210 | 158 | 116 | 42 | 70 | 243 | 7 | 70 | 243 | 48 | 75 | 125 |
| 4 | 280 | ||||||||||||||
| Type | MTM1-63 | MTM1-125 | MTM1-250 | |||||
| lnmFrameInm（A） | 63 | 125 | 250 | |||||
| Rated current (A * | 10、16、20、25、32、40、50、63 | 16、20、25、32、40、50、63、80、100、125 | 100、125、140、160、180、200、225、250 | |||||
| Rated voltage Ue (V) | AC400 | AC400 | AC400 / AC690 | AC400 | AC400 | AC400 / AC690 | AC400 | |
| Rated velit voltageUi(V) | AC800 | AC800 | AC800 | |||||
| Numerus polorum | 3、4 | 3、4 | 2、3/4 | 2、3/4 | 2、3/4 | 2、3/4 | 2、3/4 | 2、3/4 |
| IcukA） Rated terminus brevis-circuitus facultatem solveret gradu | L | M | S | L | M | S | L | M |
| IcukA） Rated terminus brevis-circuitus facultatem praevaricationem | 12 | 35 | 12 | 35 | 50 | 12 | 35 | 50 |
| Ics（kA） Rated facultatem brevis-circuitu fractionis | 6 | 22 | 6 | 22 | 35 | 6 | 22 | 35 |
| Ratedlimitshort circuitu facultatem praevaricationem | 4500 | 3000 | 2500 | |||||
| Operatio vitae (cycle) | 8500 | 7000 | 6500 | |||||
| Arcing spatium (mm * | 0、< 50 | 0、< 50 | < 50 | |||||
| Dimensiones |  |  |  | |||||
| Installation magnitudine |  |  |  | |||||
