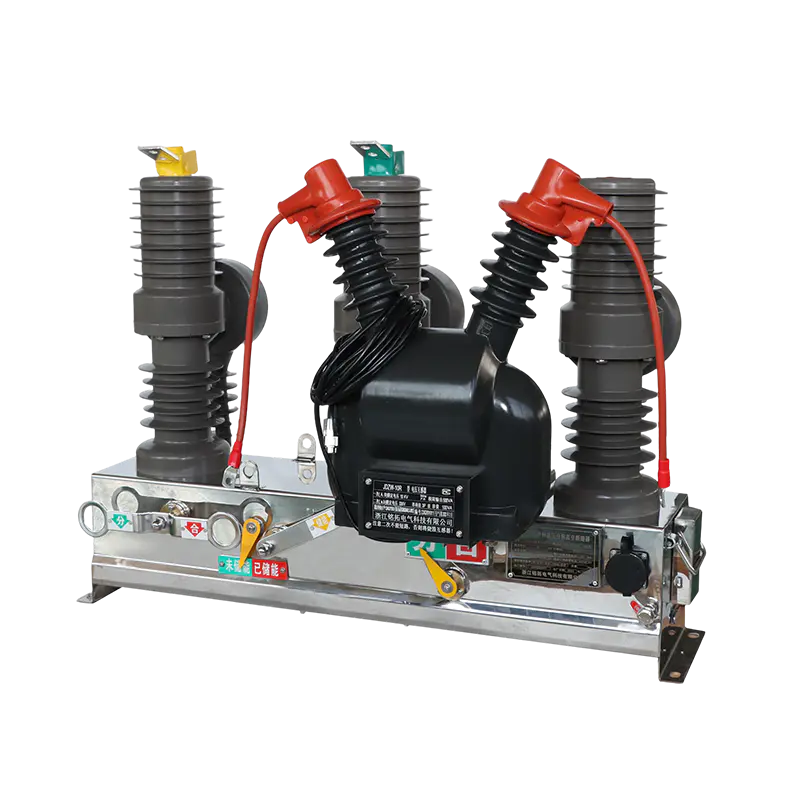

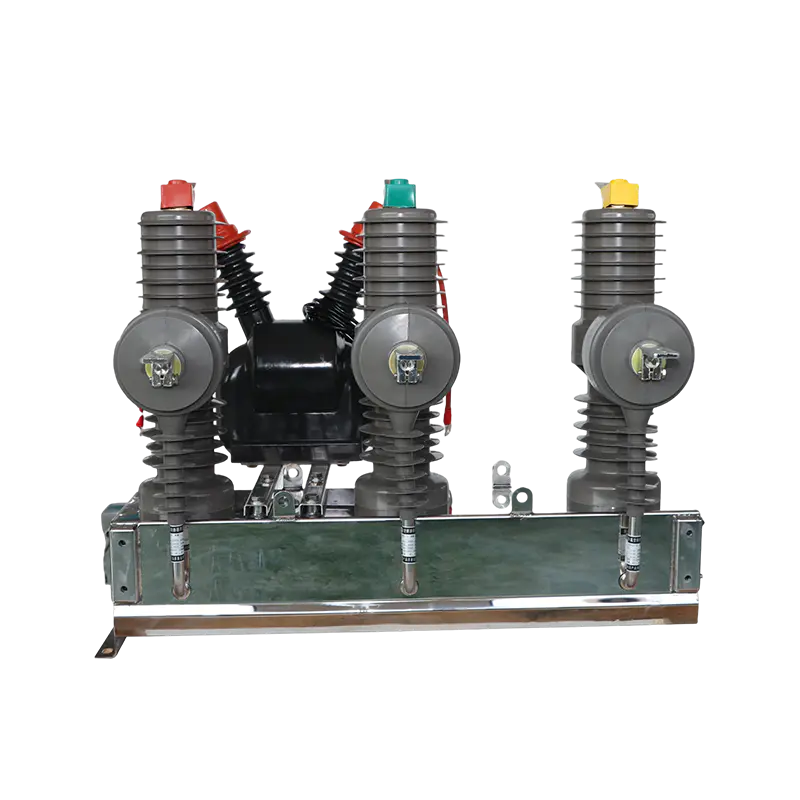

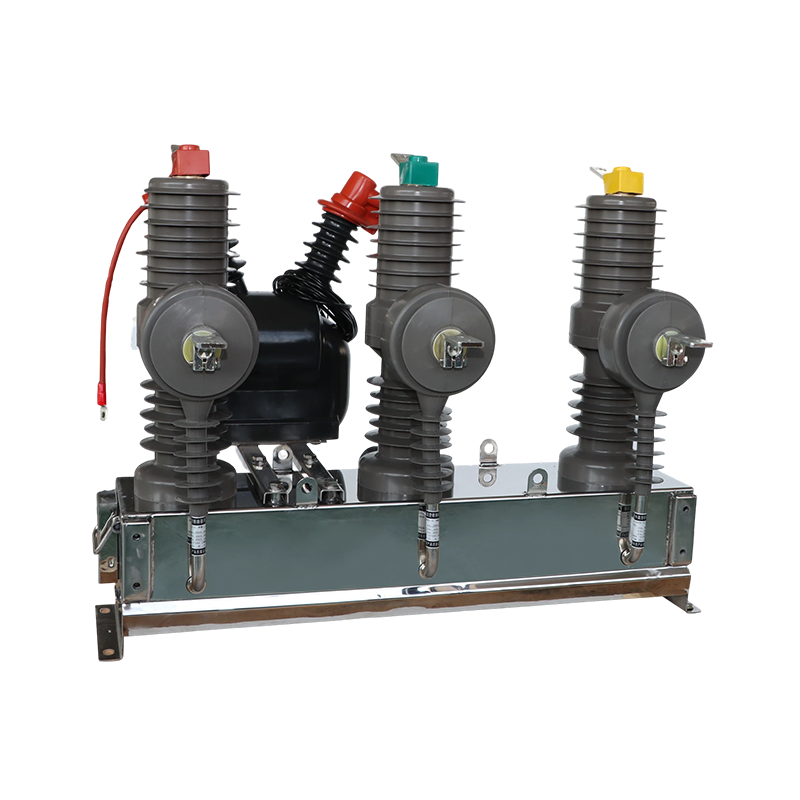

Name: ZW32 Outdoor Vacuum Circuit Breaker for Pole-mounted Medium Voltage Distribution
Rating: 5 (99 reviews)

ZW32 Outdoor Vacuum Circuit Breaker for Pole-mounted Medium Voltage Distribution

Descriptio:

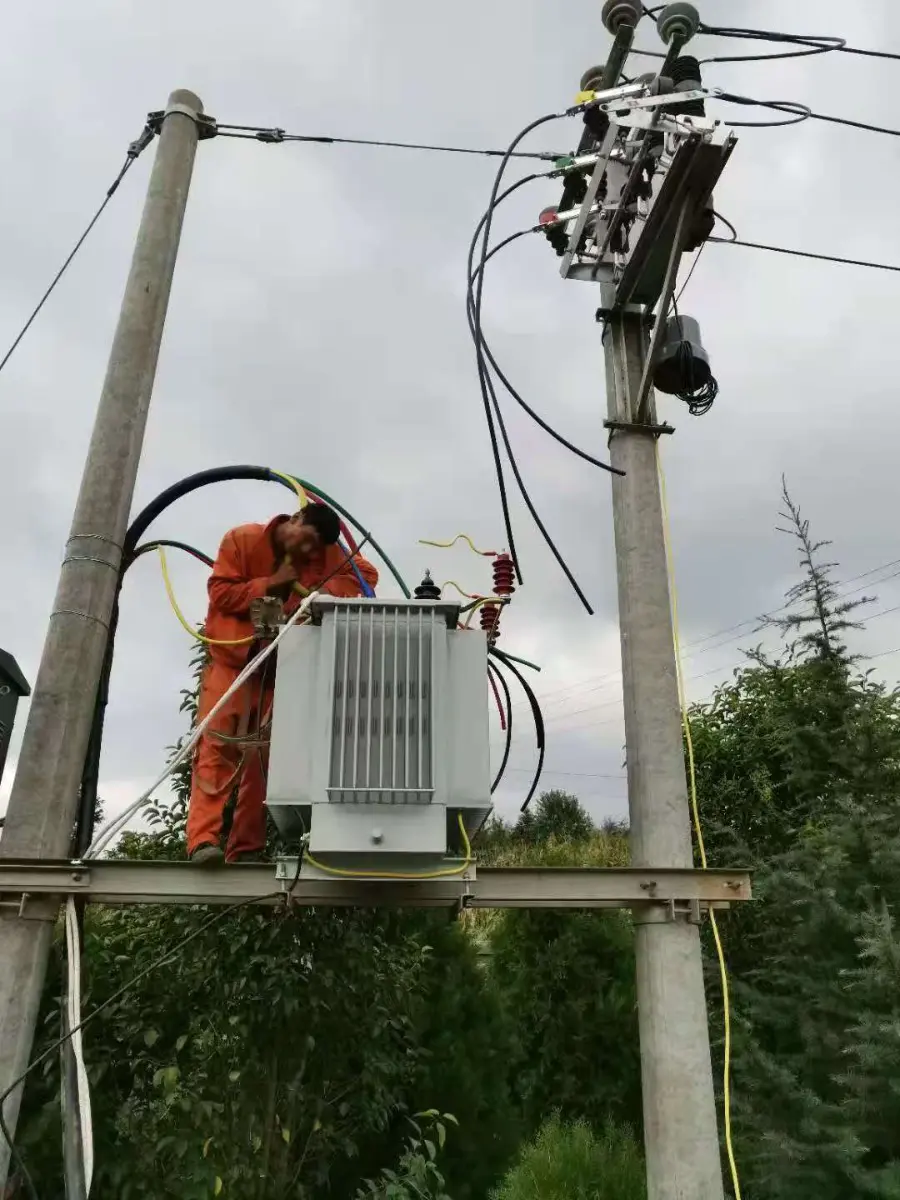

ZW32 ruptor vacuus ambitus foris applicatur et plerumque in fine superiore transformatoris inauguratus est. Ad columnae genus pertinet et plerumque in vectibus utilitates velitis instituitur. Sunt etiam pavimenta officinae cum clausuris stantes, etiam virgulae columnae notae. Quia ambitum abscindere potest, est terminus punctus inter altam et infimam intentionem in superiore fine transformantis, notus etiam ut transitum limes. Praesens ac detrimentum nulla seriei tutelae habet, ac munus gerit in mutationibus gyrationibus et onera tutandis sicut transformatores.

Applicationes:

The ZW32 Outdoor Vacuum Circuit Breaker late applicatur

Medium-voltage lineae supra caput distributio

Distributio systemata poli-graves

Velit substations et pascens tutela puncta

Virtus industrialis distribution networks

Renovabilis industria eget connexionem systemata

Eius consilium operationem velit continuam sustinet mutandi observantiam et systematis tutelam constantem servato.

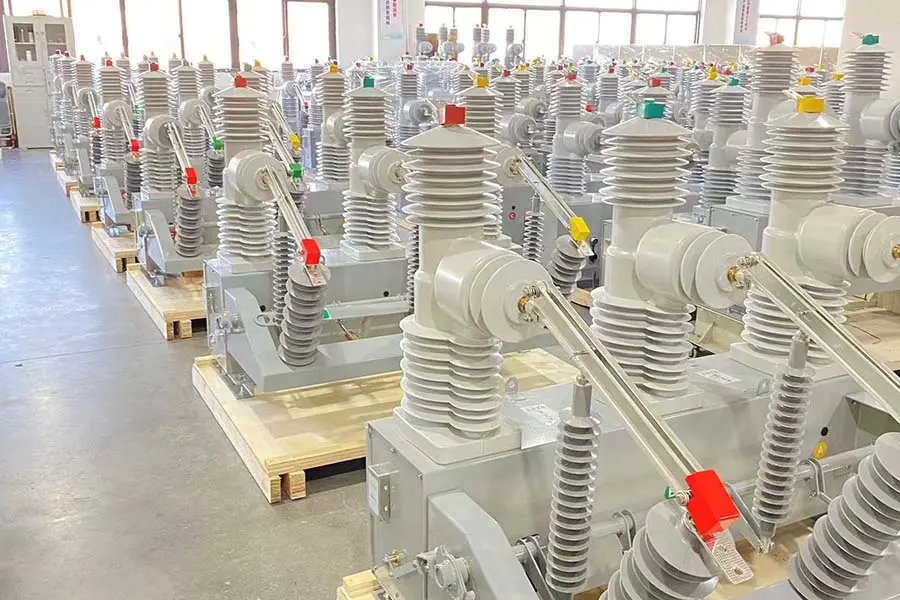

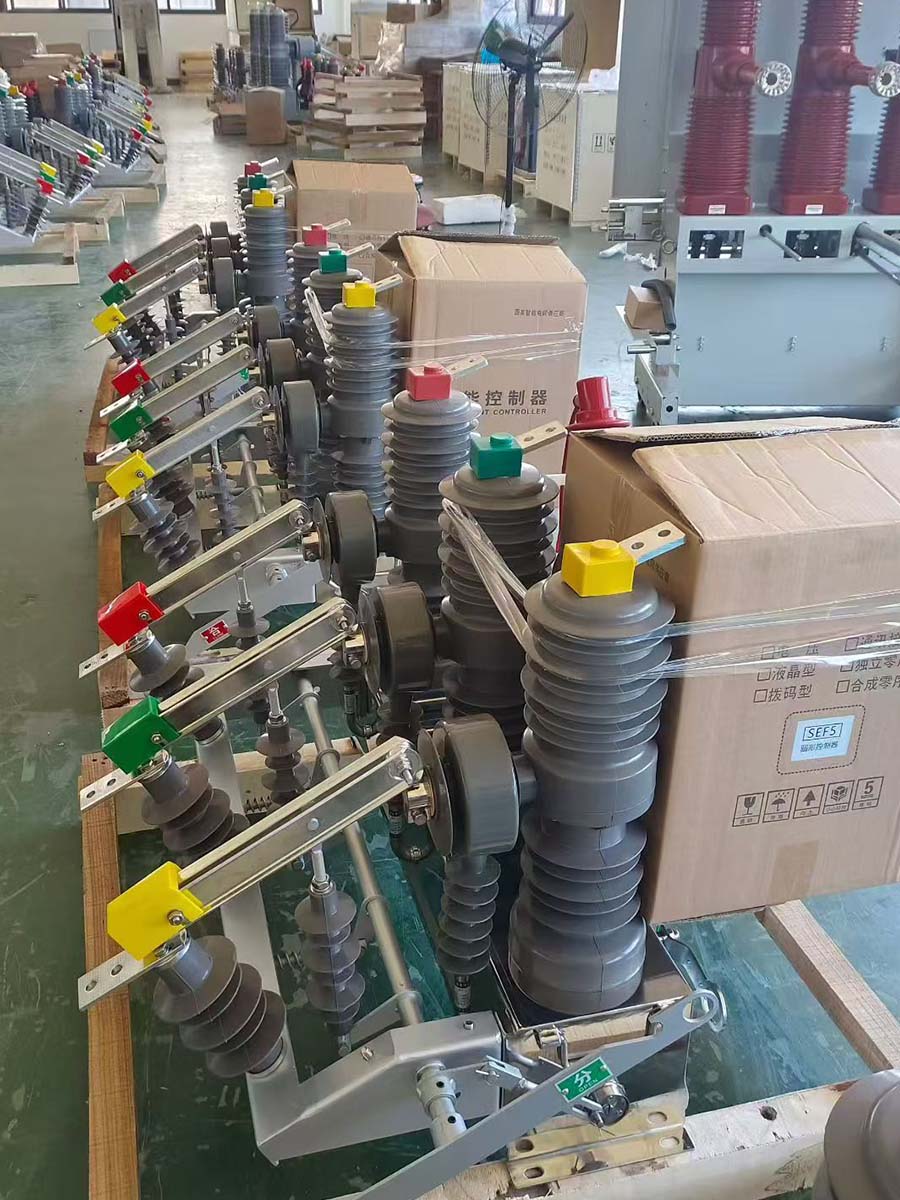

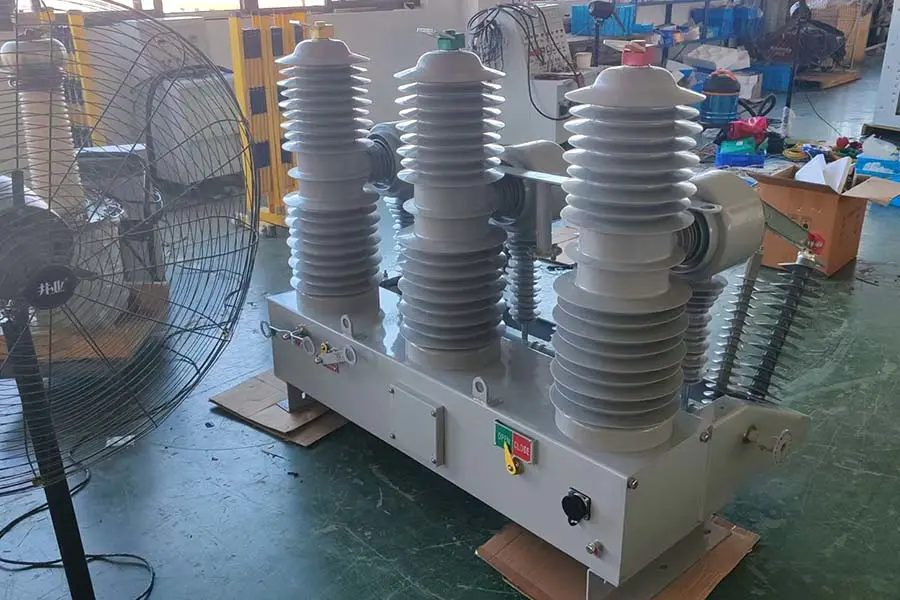

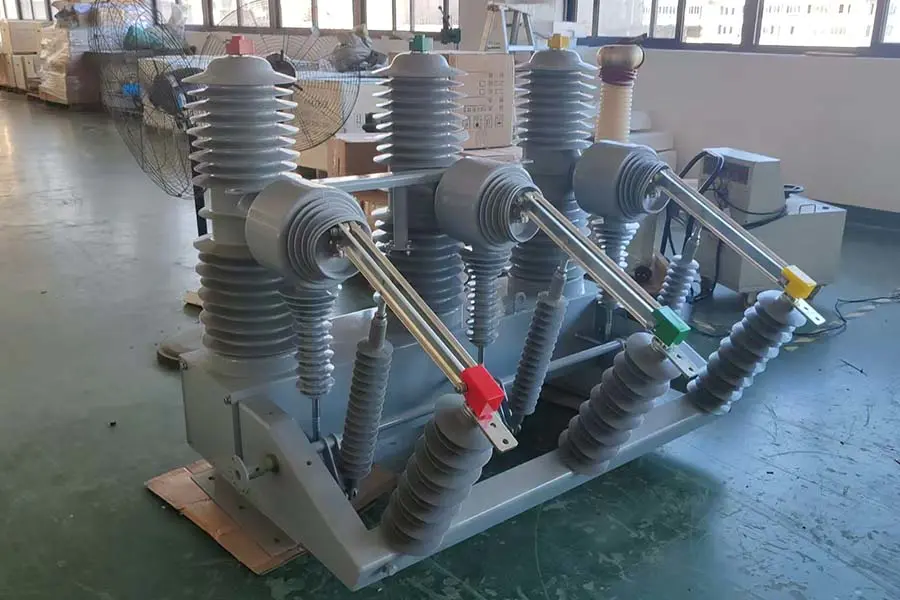

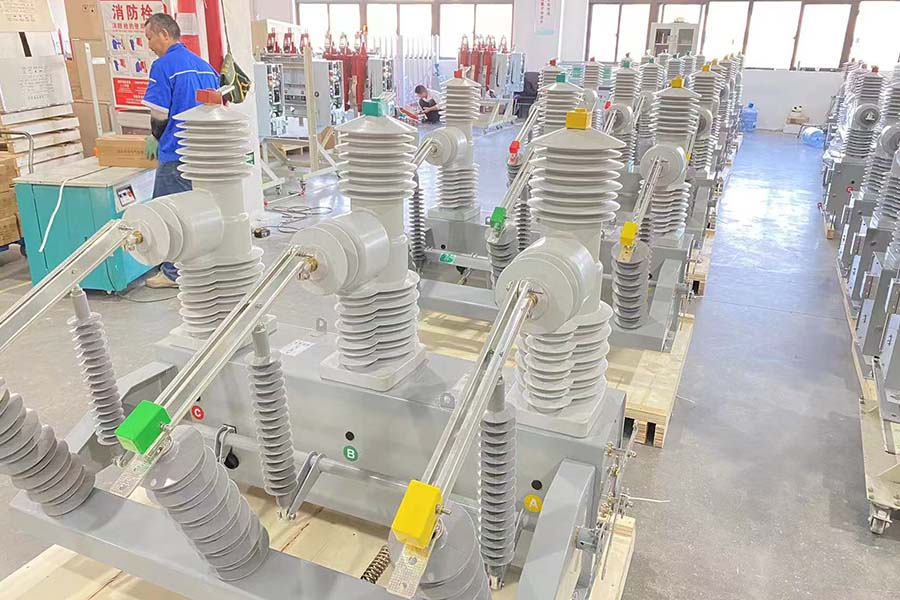

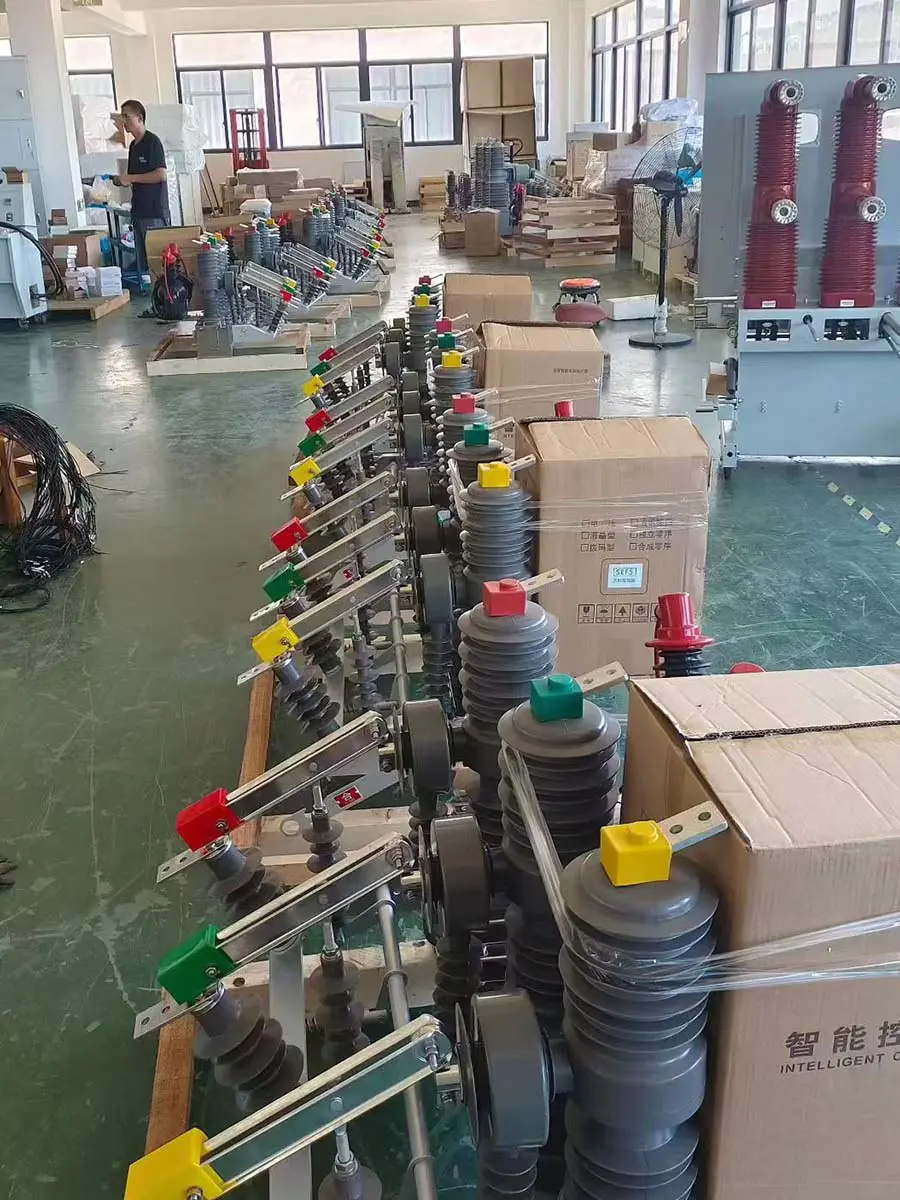

ZW32 VCB workshop
MT ELECTRICZW32

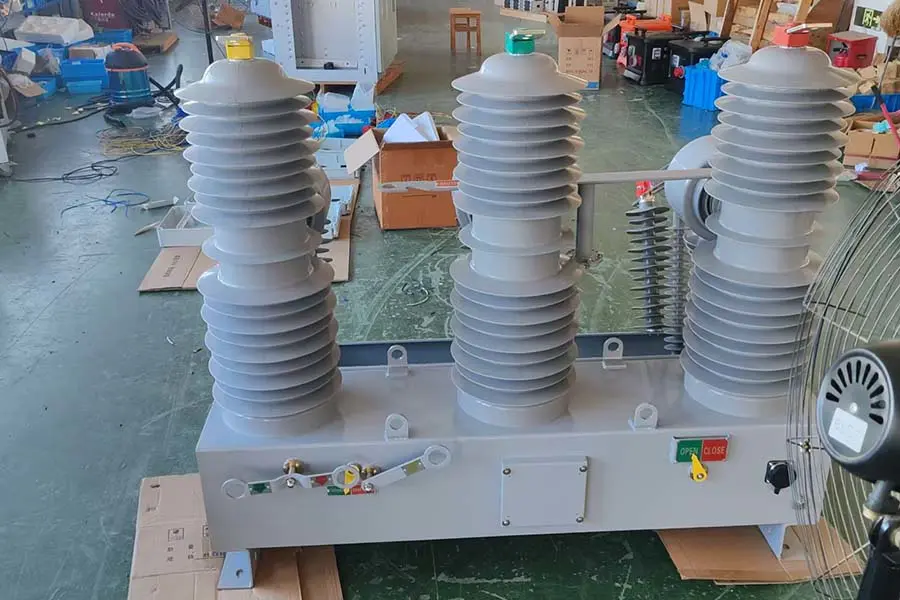

ZW32 Introduction

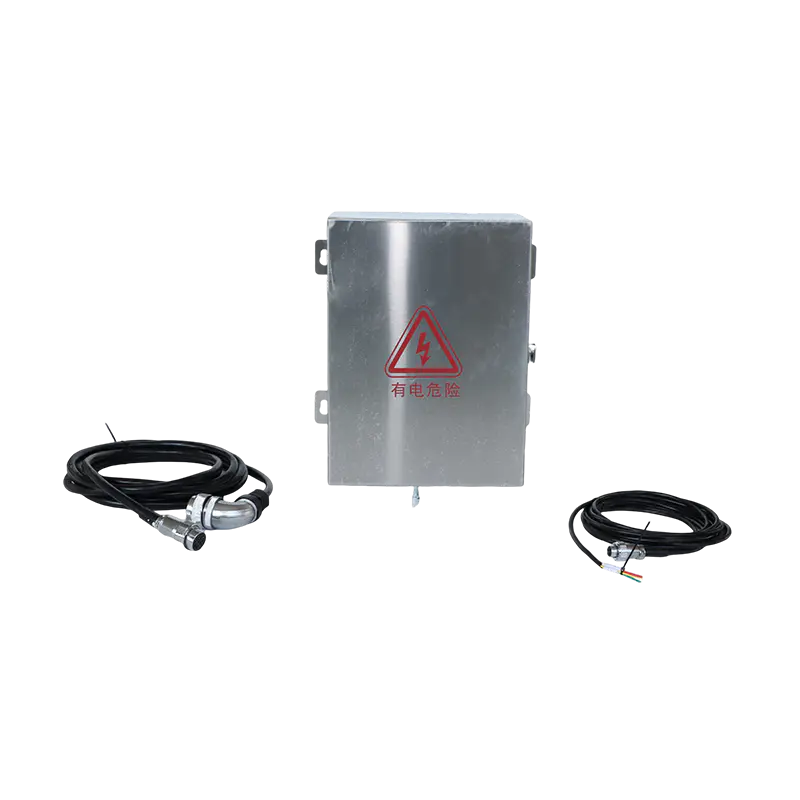

Cum in linea circuitionis exeuntis ambitus brevis vel supercurrent, commutator current signum deprehendere potest, quod ad moderatorem transmittitur. Moderator mandatum praebet ut machinam scandali, quae contactus dynamicos et staticos intra tubum vacuum ad separandum impellit, inde disiunctio attingens et ambitum interclusit, munus tutelae exercet..

Test The Opening And Closing Of The Circuit Breaker
Secondary Wires

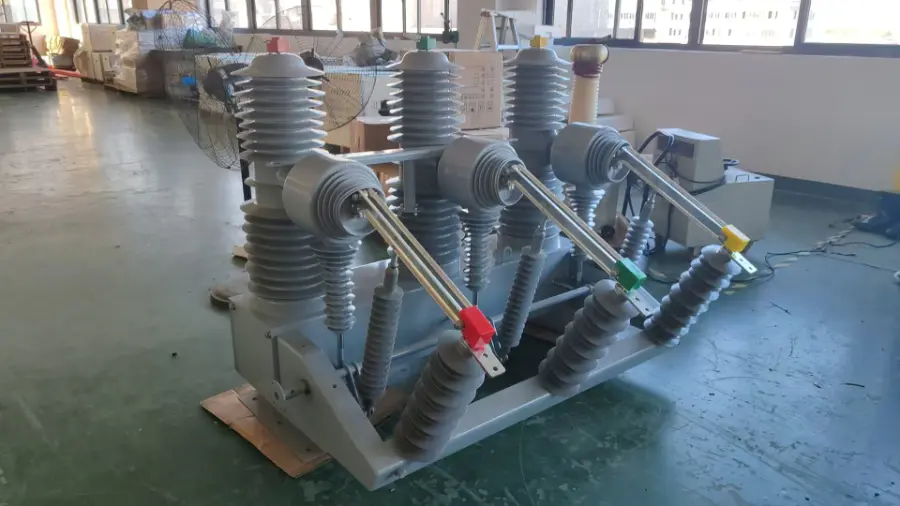

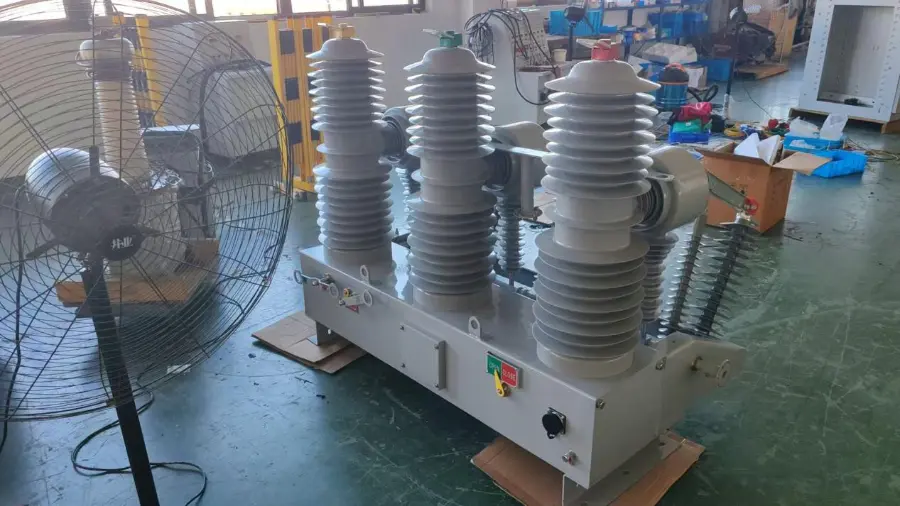

Product Debugging
Product Debugging
Product Debugging

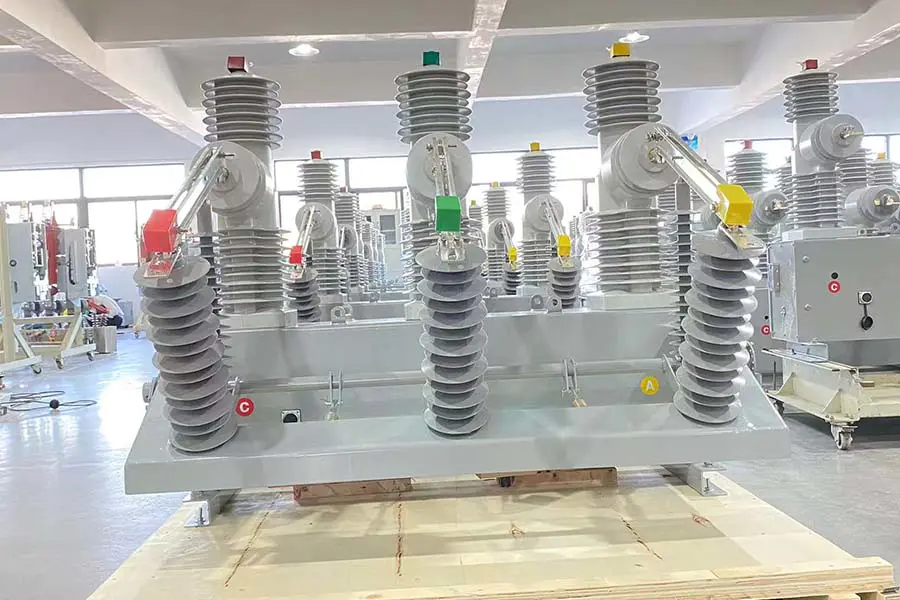

ZW32 VCB Workshop
MT Electric ZW32
ZW32 Introduction

Ad translationem salutem obtinendam, fructus electrica nostri exportantur in cratibus ligneis aucti. Crates caloris curationem subeunt et ISPM-15 ferunt signum, ut celeris consuetudines alvi ferant. In consilio basi elevato operationem forklift faciliorem facit, cum collisio-absorbens ligamen internum efficit ut fructus integros perveniant. Crates exteriores omnes perspicue intitulati sunt et logisticis internationalibus signis obtemperant.

High And Low Voltage Switchgear ACB MCCB VCB

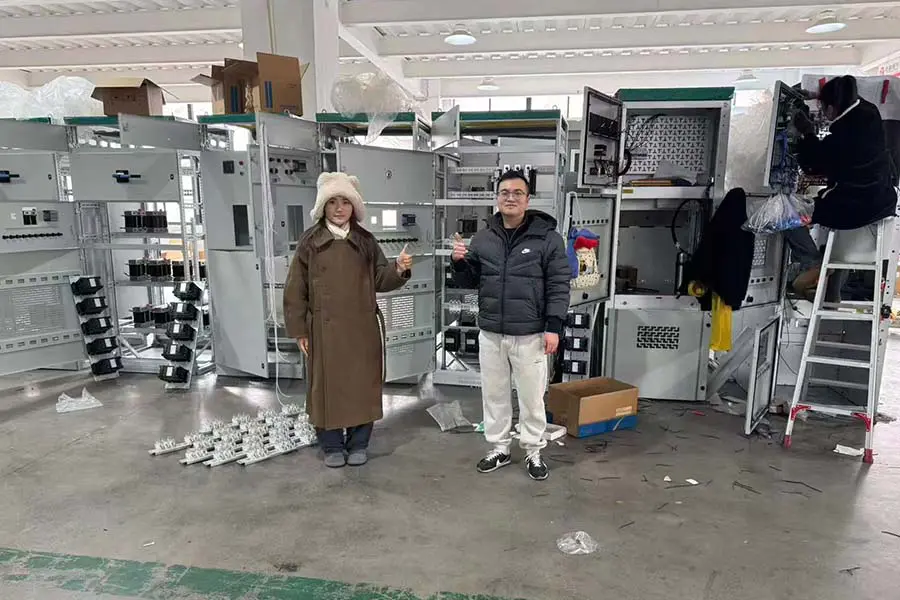

Box-Type Substation Uses Our VCB, MCCB, and ACB
High And Low Voltage Cabinets Successfully Powered

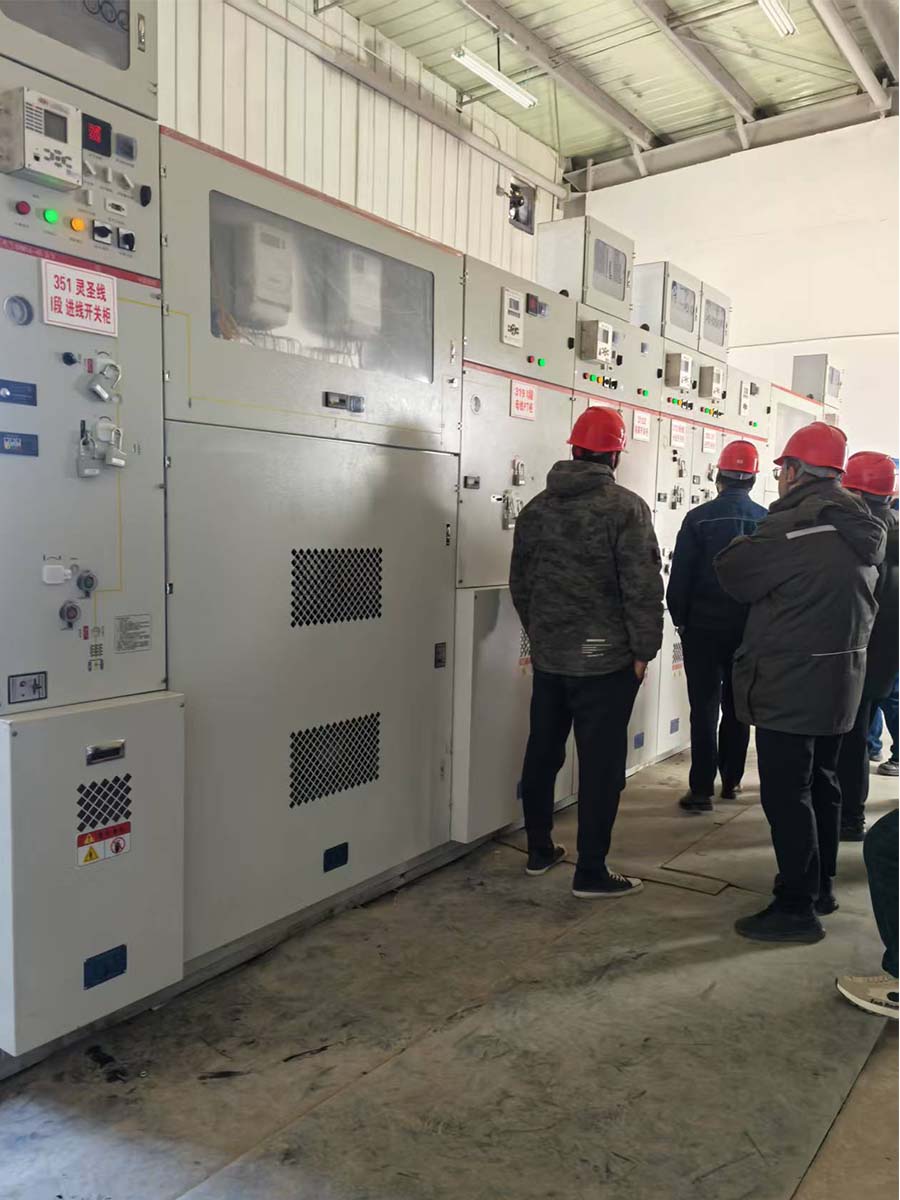

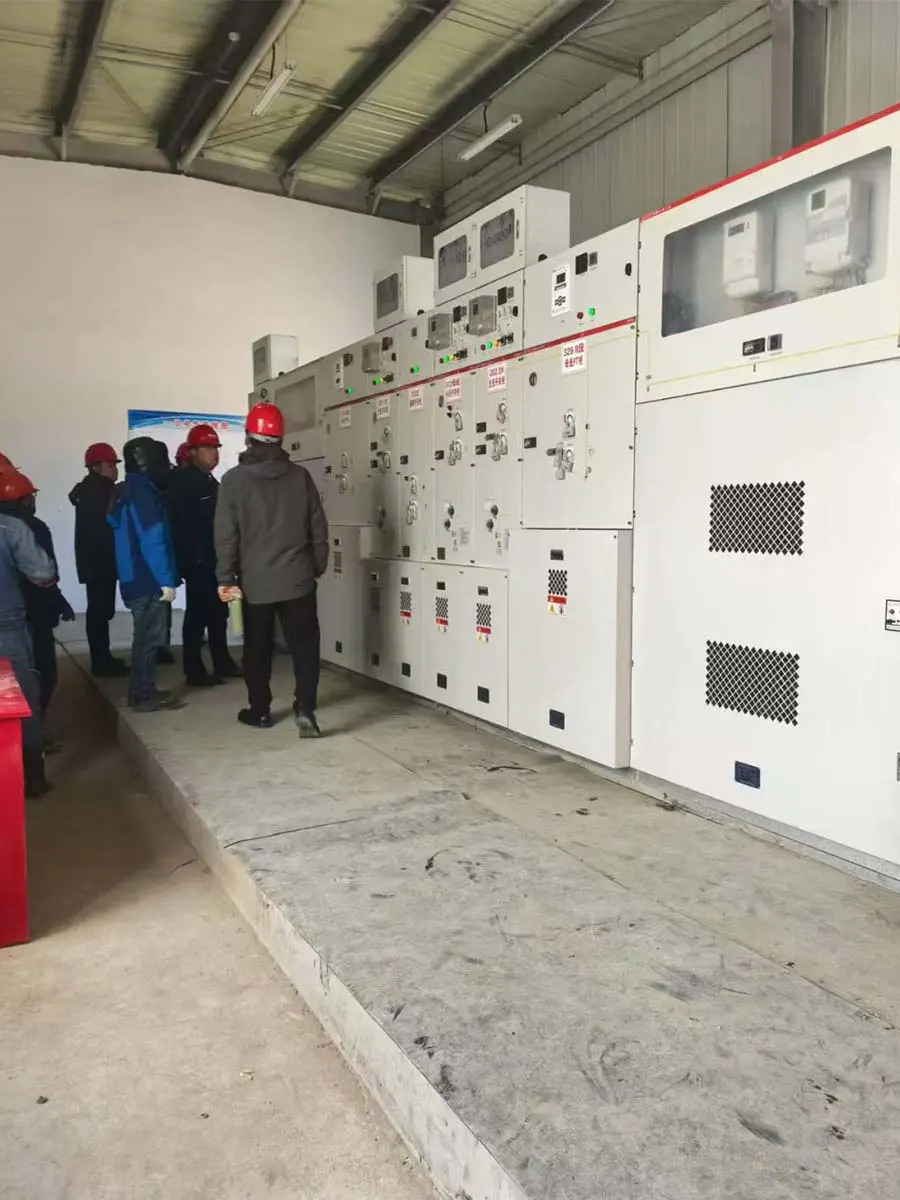

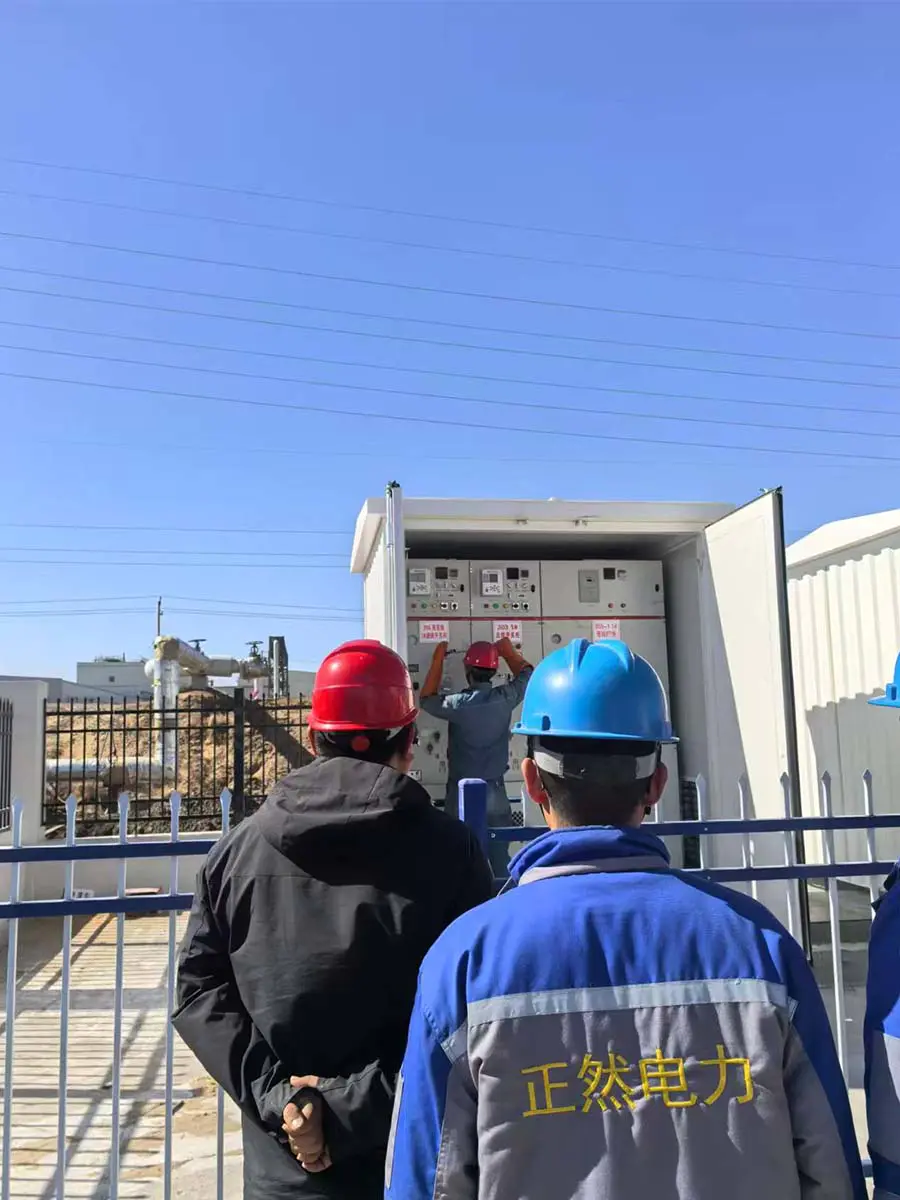

35kV gas-insulated switchgear, VCB
35kV gas-insulated switchgear, VCB
35kV gas-insulated switchgear, VCB

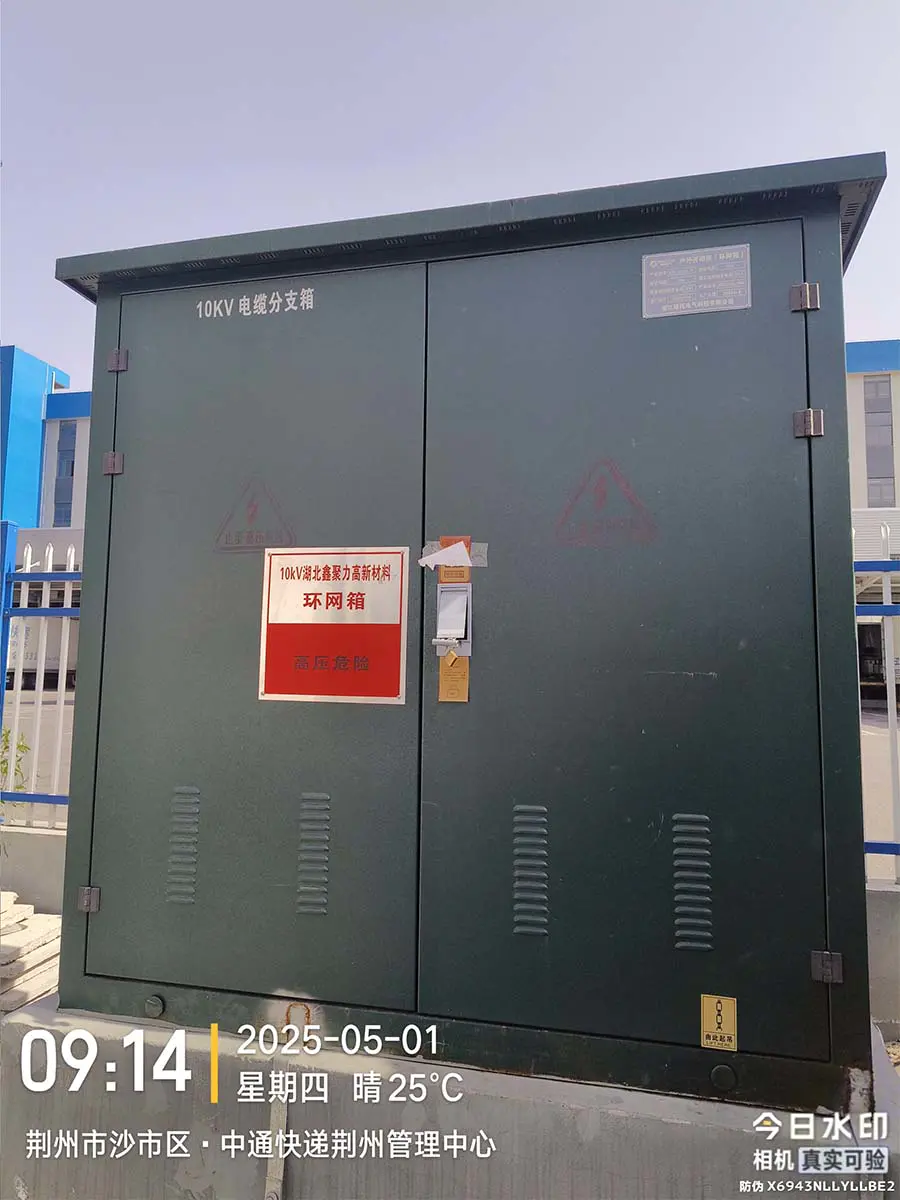

10kV ring main unit, VCB

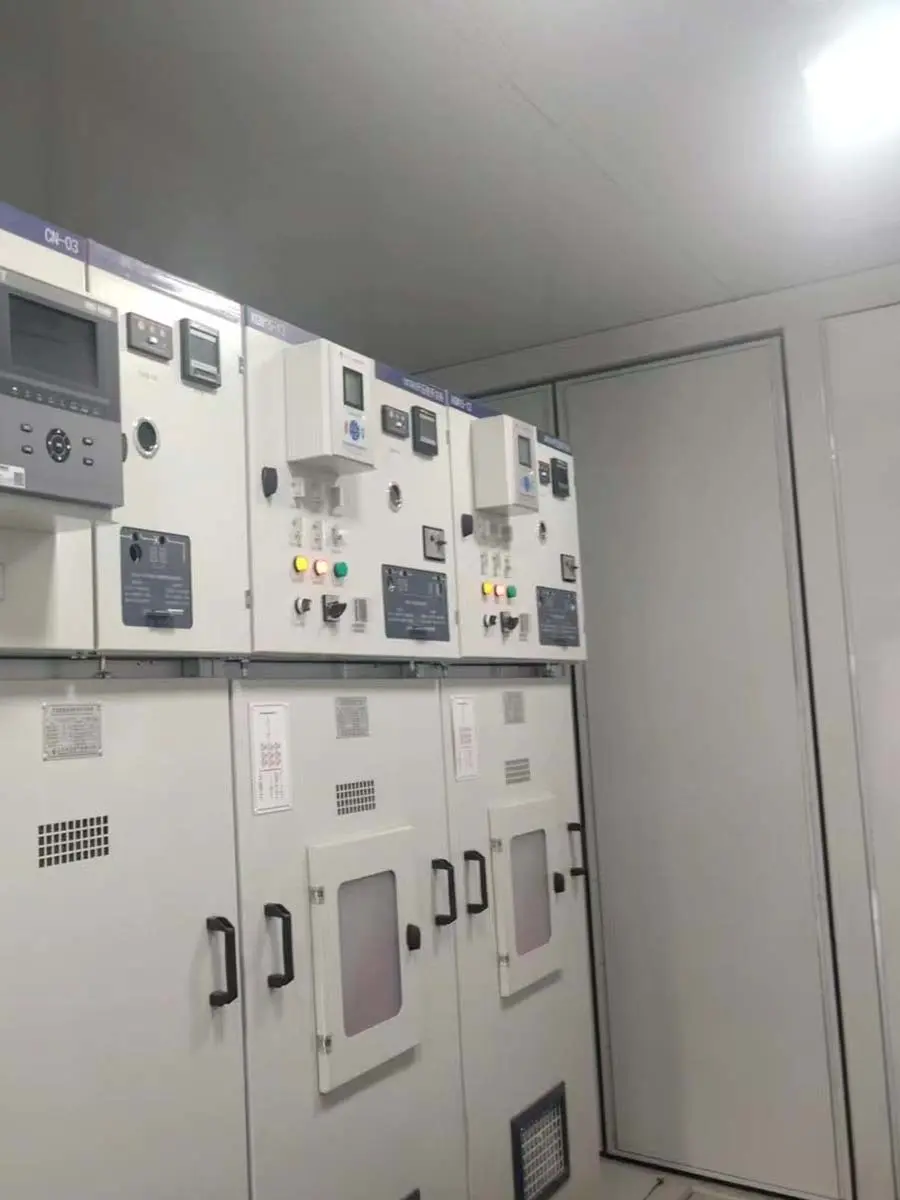

35kV high-voltage switchgear, power transmission successful
Power transmission successful
Photovoltaic Grid-Connected Cabinet Utilising ACB and MCCB
Box-typesubstation ACB VCB MCCB
Box-typesubstation ACB VCB MCCB
Box-typesubstation ACB VCB MCCB

Parameter Categoria	Specification	Dicta
Ratum Voltage	12 kV	Standard for distribution networks
Ratum Current	400A, 630A	Custom ratings available
Rated brevis Circuit Fractio Current	16 kA, 20 kA, 25 kA
Rated breve tempus sustine Current	16 kA/4s, 20 kA/4s, 25 kA/4s
Rated Pecco sustine Current	40 kA, 50 kA, 63 kA .
Rated Insulation Level	Power Frequency: 42 kV (1 min) / Lightning Impulse: 75 kV
Mechanica vitae	10,000 res
Vita electrica	10,000 res (at rated current)	Plena facultatem fractionis
Interpellare Medium	Vacuum	Signati tellus utrem
Mechanismus operating	Ver	Manual aut motorized
Imperium intentione	AC/DC 110V, 220V	Libitum 24V, 48V
Praesidium Degree	IP67	Idoneum ad dura ambitus

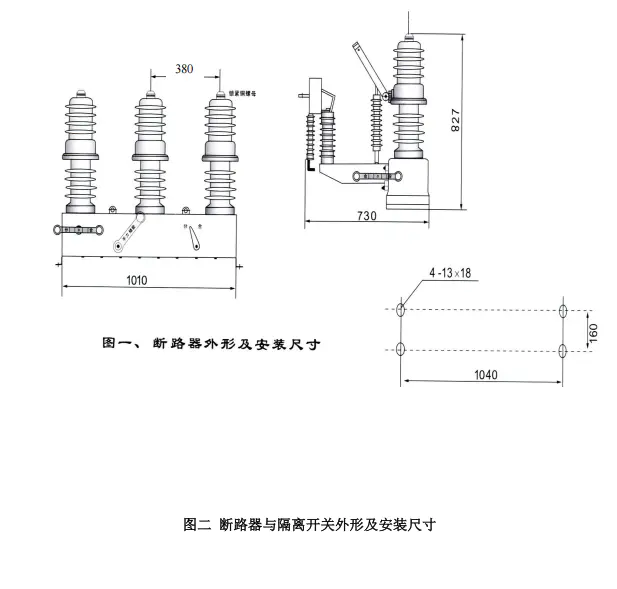

Dimensiones (H×W×D)	880 560 680 mm	Foedus design
Pondus	Proxime. 130 kg	Securus install

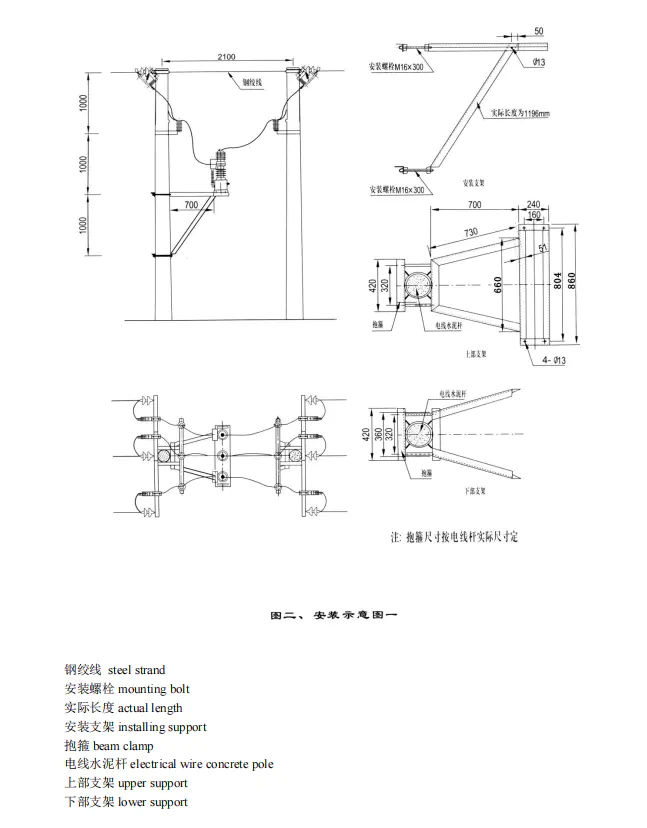

Ratio institutionem	Pole-ineditis	Usus velit
Ambiens Temperature	-40°C ad 55°C	Lata range operating
altitudo	≤ (IV) m	Summus altitudo praesto versionem
