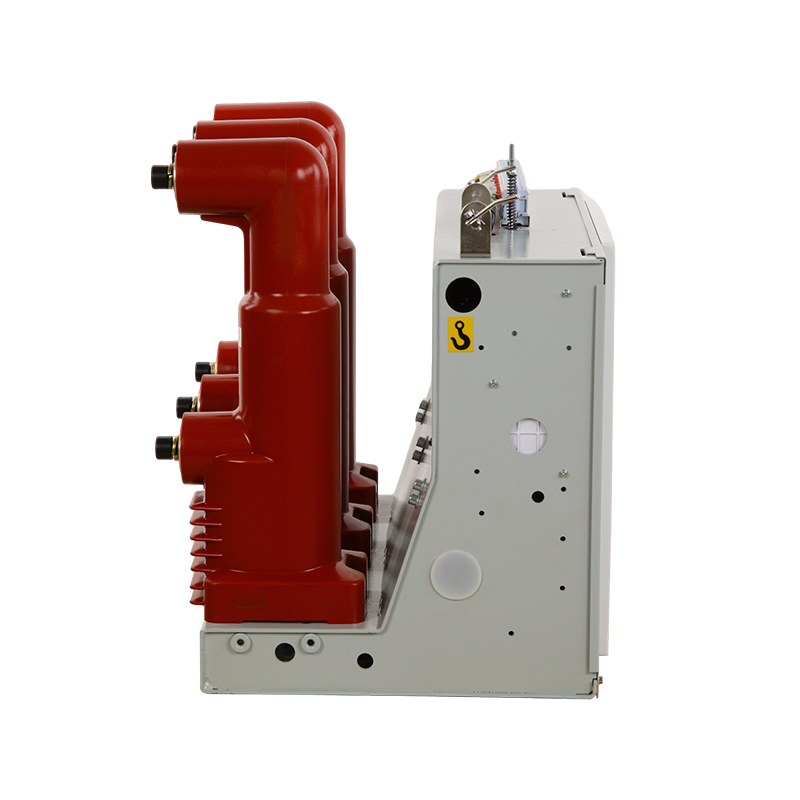

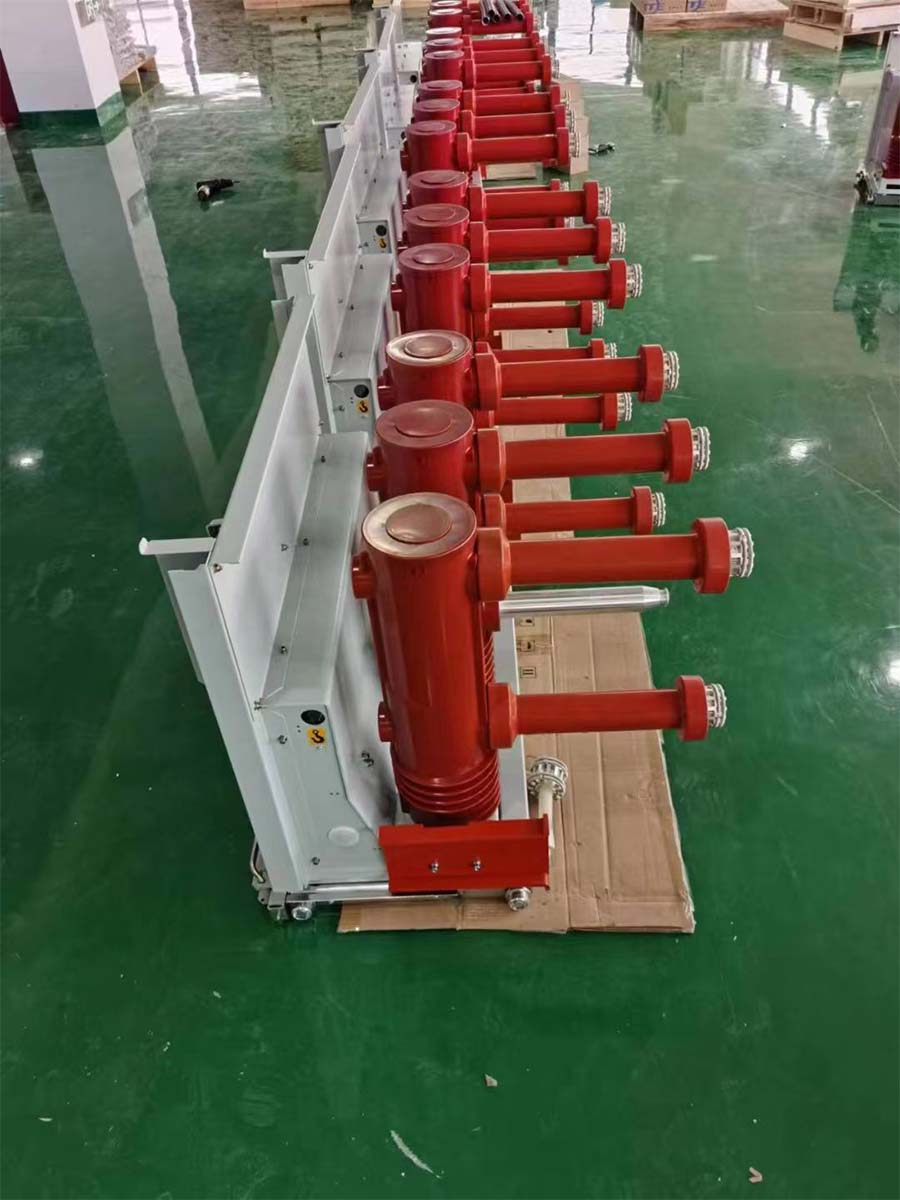

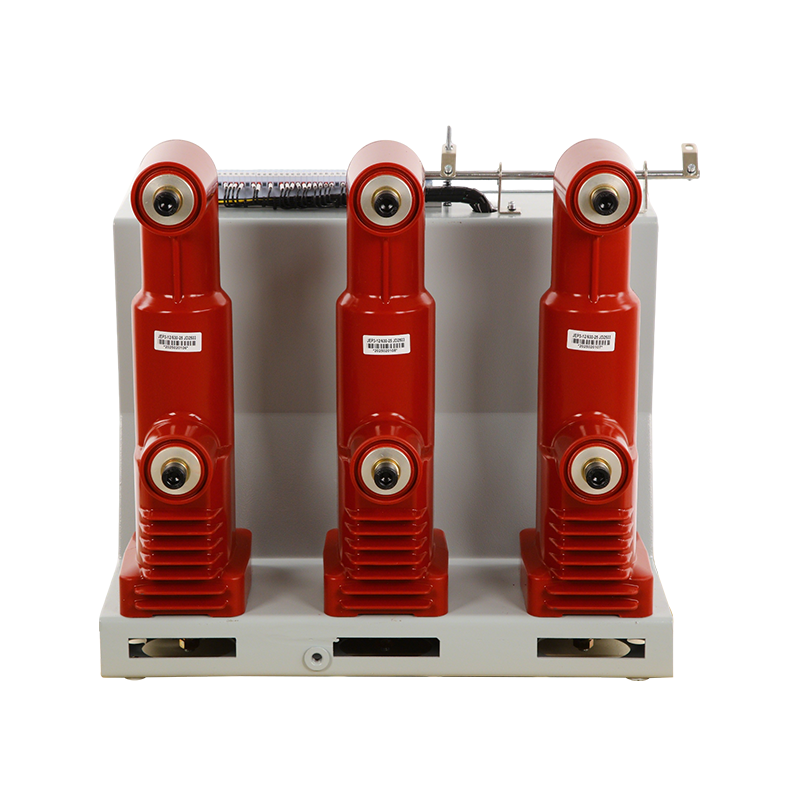

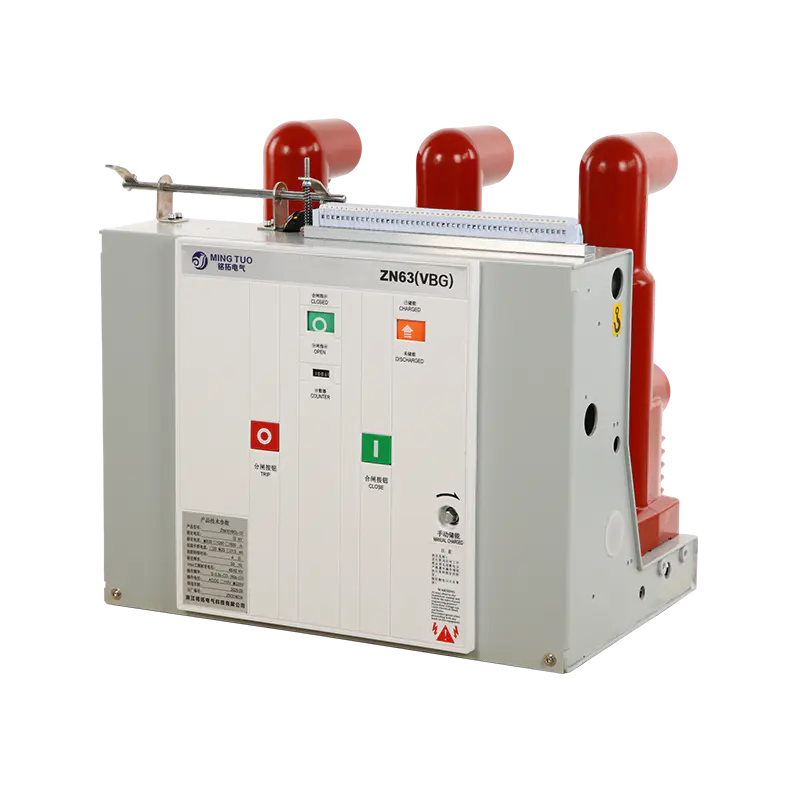

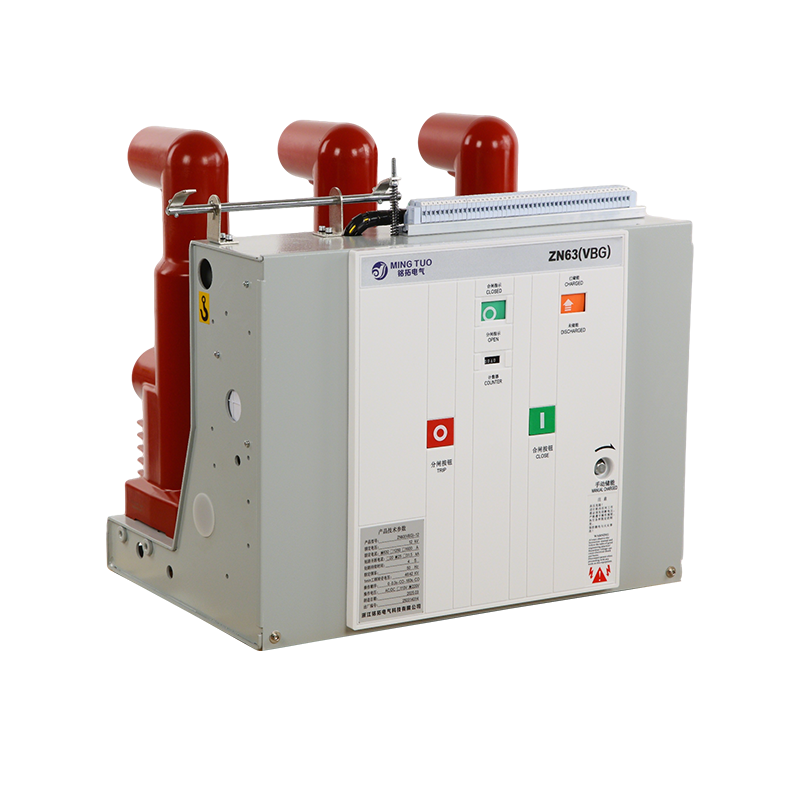

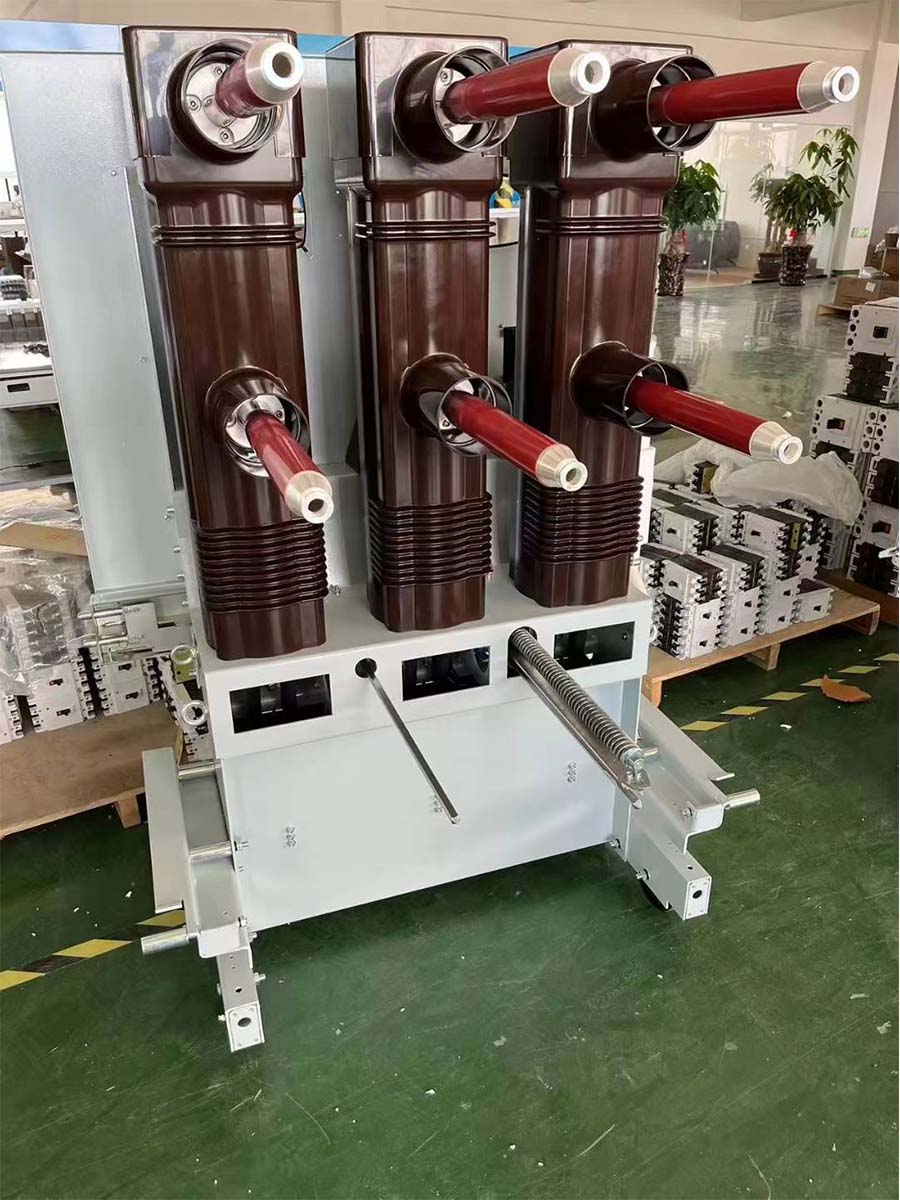

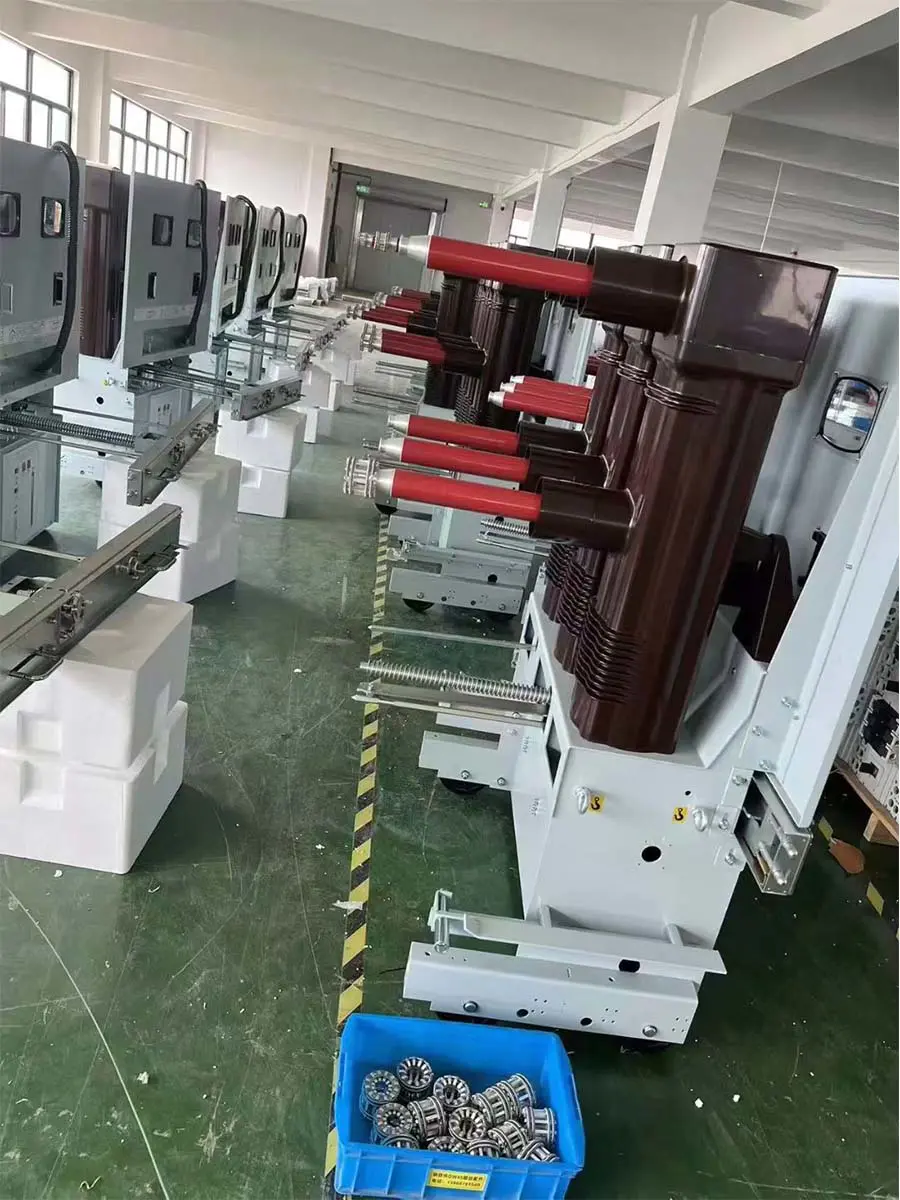

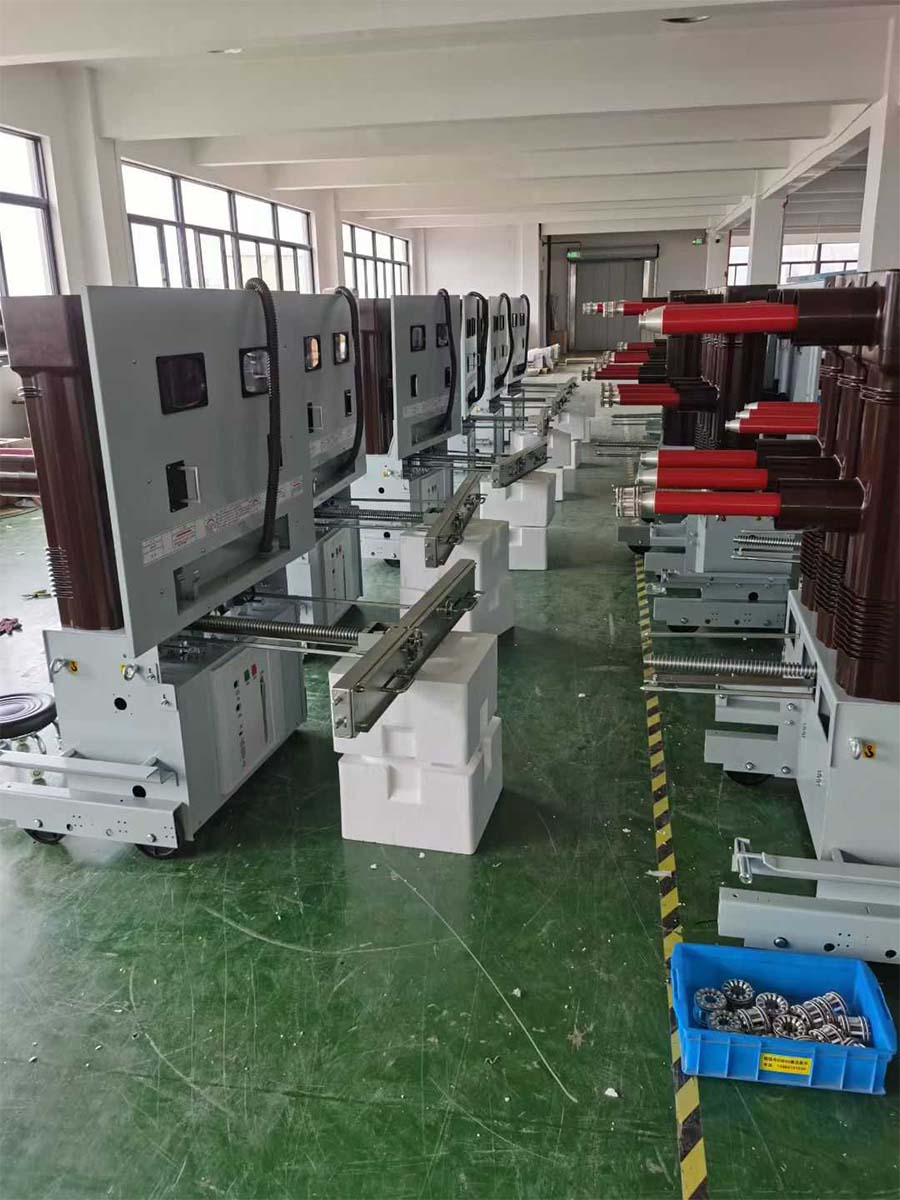

Mercatus VS1 12kV Medium-Voltage Indoor Drawout Vacuum Circuit Breaker, 31.5kA
Home / Products / Vacuum Circuit Breakers / Indoor Vacuum Circuit Breakers / VS1 12kV Medium-Voltage Indoor Drawout Vacuum Circuit Breaker, 31.5kA
- High Voltage Vacuum Circuit Breaker
- VS1 Medium-Voltage Indoor Vacuum Circuit Breaker

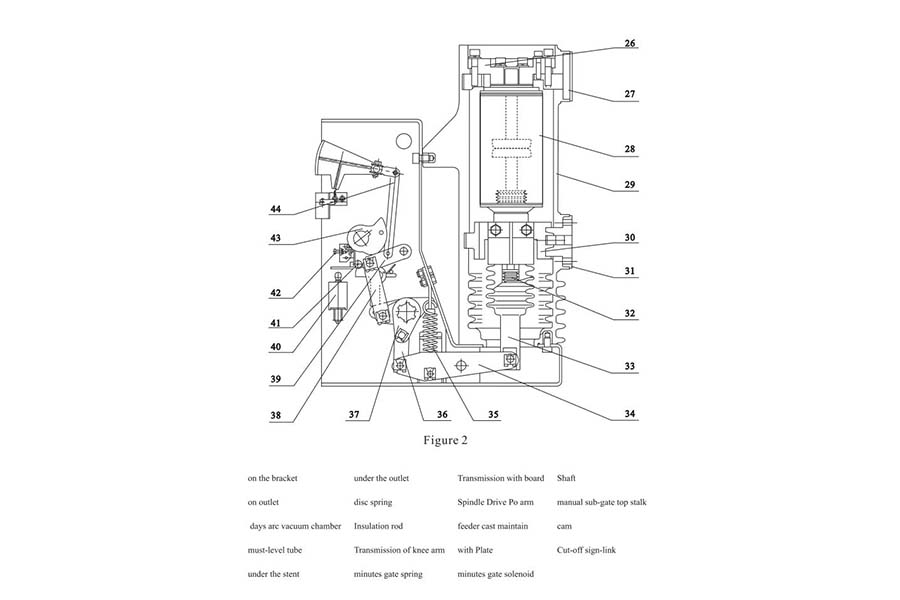

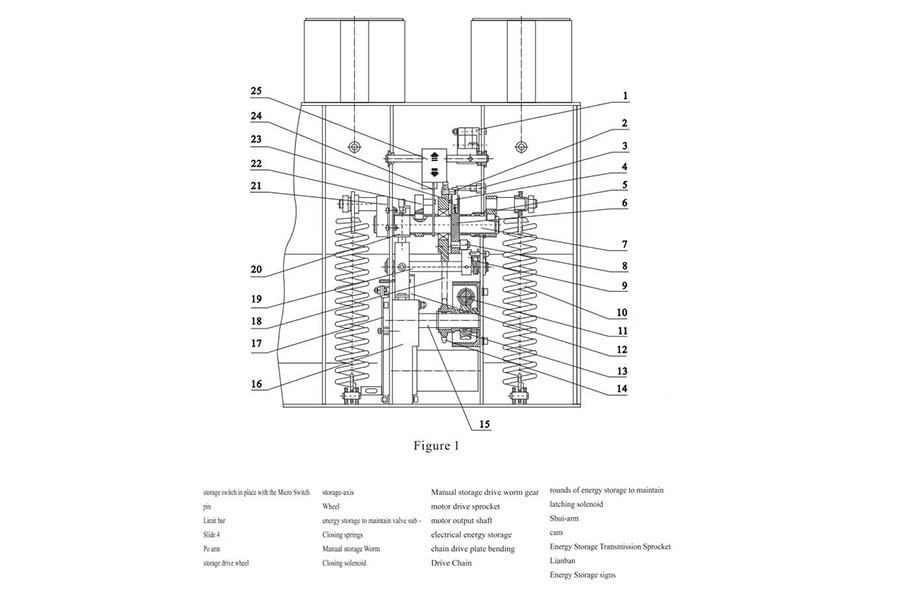

- VCB Composition
Sub normali operatione principalis contactus manent ruptor clausi, sino continuum fluxum currentis. Durante onere vel eventuum brevium circuitus, mechanismum scelerisque vel magneticum iter operatur. Ver mechanismus celeriorem contactum separationis efficit, arctum electricam moderatum generans. Arcus hic statim in vacuum interpellatorem dirigitur, ubi refrigeratur, dividitur, extinguitur. Hic processus sectionem vitiosam segregat, apparatum amni protegit et detrimentum in systemate altiore impedit. Effectus est culpa velox alvi, operatio tuta, ac minima conservatio requisita.
Accessiones Producti
Insulating Cylinder
Main Product
Moving Contact
Flexible Connection
Touch And Touch Arm Cover
Bearer Supporting Bracket
Insulating Cylinder
Vaccum Tube
-
1
-
2
_0010_a412801fb401b68fe4de3d978b4eaae4
Ad translationem salutem obtinendam, fructus electrica nostri exportantur in cratibus ligneis aucti. Crates caloris curationem subeunt et ISPM-15 ferunt signum, ut celeris consuetudines alvi ferant. In consilio basi elevato operationem forklift faciliorem facit, cum collisio-absorbens ligamen internum efficit ut fructus integros perveniant. Crates exteriores omnes perspicue intitulati sunt et logisticis internationalibus signis obtemperant.
-
Power transmission successful
-
Photovoltaic Grid-Connected Cabinet Utilising ACB and MCCB
-
Box-typesubstation ACB VCB MCCB
-
Box-typesubstation ACB VCB MCCB
-
Box-typesubstation ACB VCB MCCB
-
Box-typesubstation ACB VCB MCCB
-
Photovoltaic Grid-Connected Cabinet Utilising ACB and MCCB
-
Power transmission successful
-
Power transmission successful
-
Photovoltaic Grid-Connected Cabinet Utilising ACB and MCCB

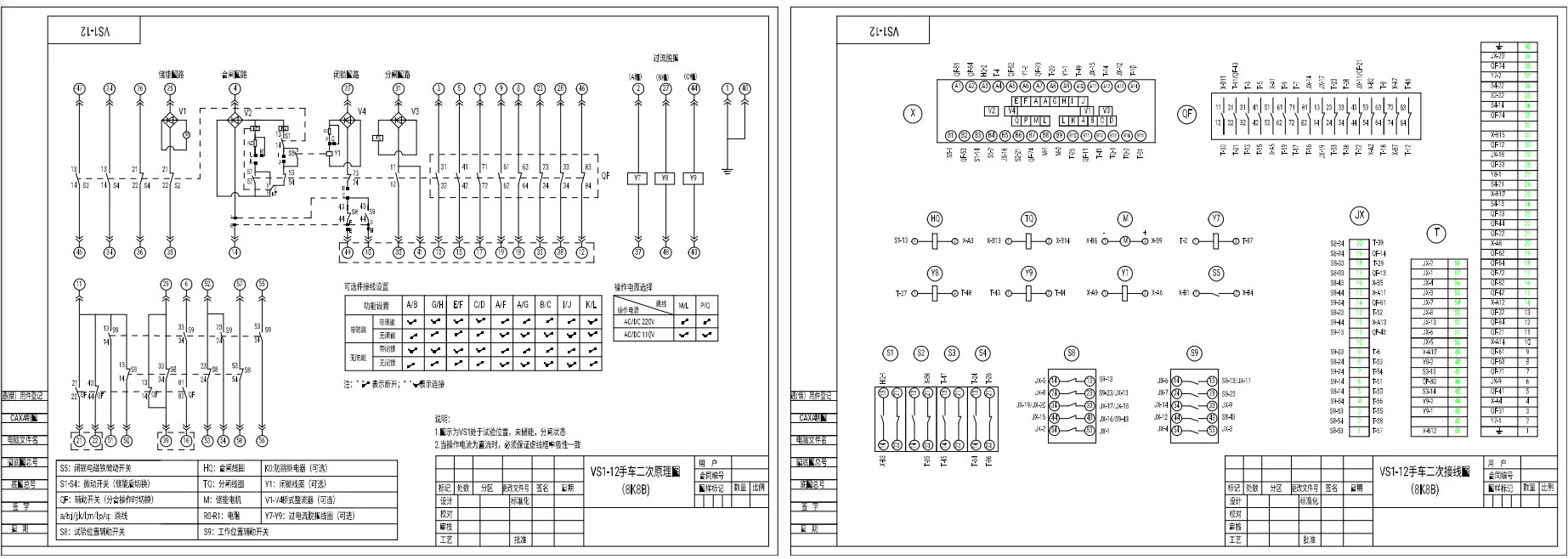

| No | Item | Unitates | Numerare valorem |
| 1 | In voltage rated | - | 12 24 35 |
| 2 | In voltage rated (short-term frequency tolerance 1min) | kV | 42 |
| 3 | In voltage rated tolerance lightning shocks peak | - | 75 |
| 4 | Rated frequency | Hz | 50 |
| 5 | Ratum current | A | 630、 1250 |
| 630、 1250、1600、2000、2500、3150 | |||
| 1250、1600、20002500、3150、4000 | |||
| 6 | Ratum brevis circuitio aperta current | KA | 20/25、31.5、40 |
| 7 | In voltage rated short tolerance | KA | 20/25、31.5、40 |
| 8 | Rated brevi spatio | s | 4 |
| 9 | Ratum current peak tolerance | KA | 50/63、80、100 |
| 10 | Rated brevis-circuitus current prope | KA | 50/63、80、100 |
| 11 | Secundum ambitum frequentiae intentionis tolerantiae 1min) | V | 2000 |
| 12 | Rated singleback capacitor patenti circumitio currenti | A | 630/400 (40KA 800/400) |
| 13 | Rated capacitor prope excursus | KA | 12.5 (frequentia nulla major 1000Hz); |
| 14 | Break-brke time (aestimavit voltage) | ms | ≤50 |
| 15 | Pascens tempus (aestimavit voltage) | ms | ≤100 |
| 16 | Mechanica vita | - | 20000 |
| 17 | Ratum current open circuit times (life) | Switching | 20000 |
| 18 | Rated brevis-circuitus vena aperta circuitio | - | 50(40kA≤30) |
| 19 | Dynamic et static contactu permittit uti crassitudine | mm | 3 |
| 20 | De rated voltage pascens operating | - | - |
| 21 | In voltage rated break-brake operations | V | AC110/220 DC110/220 |
| 22 | Repono motricium rated voltage | - | - |
| 23 | Repono motricium potentia rating | W | 70 |
| 24 | Tempus repono | s | ≤10 |
| 25 | Contactus foramen spatium | mm | 11 ± 1 |
| 26 | Super-iter | - | 3.5 ± 0.5 |
| 27 | Claudendo contactus currentis tempore | ms | ≤240(A≤3) |
| 28 | Tres puncta phase claudentes diversis gradibus sexualis | - | ≤2 |
| 29 | Mediocris portae celeritas (contactus separatio-6mm) | m/s** | 0.9–1.2 |
| 30 | Mediocris claudendo velocitate (6mm-contactus clausurae) | m/s** | 0.5-0.8 |
| 31 | Ducens electrica ambitu resistentia | μΩ | ≤50(630a) 、 ≤45(1250A) ≤35(160-2000A)、≤250(2400) |
| 32 | Contactor satietas contactus pressura | N | 2000±200(2000A)、2400±200(25kA) 3100±200(31.5kA)、4250± 250(40kA) |
| 33 | In ordine rated operating | - | Puncta - 0.3s - et puncta 180s - et - |
