Descriptio:
ZW28 Circuitus vacuus ruptor foris applicatur et plerumque in superiore transformatoris fine inauguratus est. Ad columnae genus pertinet et plerumque in vectibus utilitates velitis instituitur. Sunt etiam pavimenta officinae cum clausuris stantes, etiam virgulae columnae notae. Quia ambitum abscindere potest, est terminus punctus inter altam et infimam intentionem in superiore fine transformantis, notus etiam ut transitum limes. Praesens ac detrimentum nulla seriei tutelae habet, ac munus gerit in mutationibus gyrationibus et onera tutandis sicut transformatores.

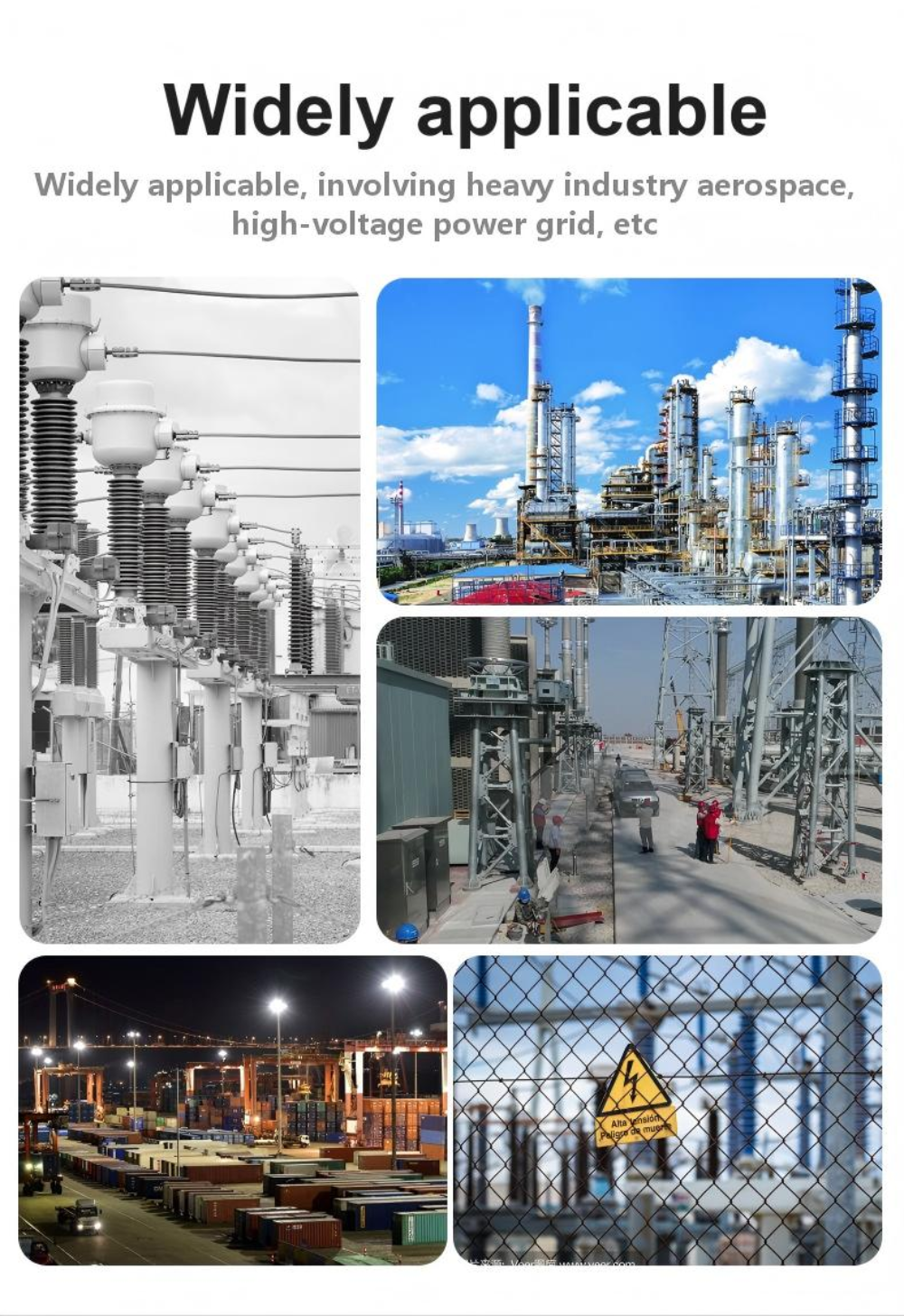

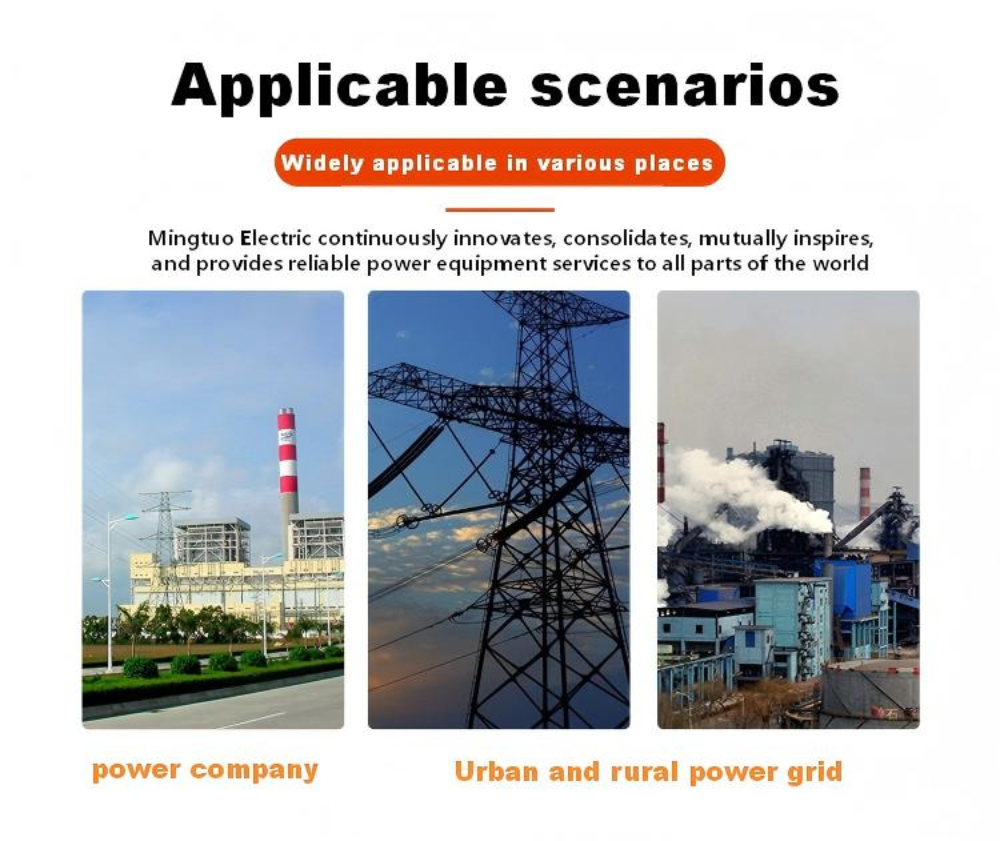

Applicationes:
ZW28 Otis Vacuum Circuitus Breaker late applicatur:
Medium-voltage lineae supra caput distributio
Distributio systemata poli-graves
Velit substations et pascens tutela puncta
Virtus industrialis distribution networks
Renovabilis industria eget connexionem systemata
Eius consilium operationem velit continuam sustinet mutandi observantiam et systematis tutelam constantem servato.
 | |
 | |
Cum in linea circuitionis exeuntis ambitus brevis vel supercurrent, commutator current signum deprehendere potest, quod ad moderatorem transmittitur. Moderator mandatum praebet ut machinam scandali, quae contactus dynamicos et staticos intra tubum vacuum ad separandum impellit, inde disiunctio attingens et ambitum interclusit, munus tutelae exercet..
| - Lorem possumus et adiuvare clientes in eligendo aptam transformator facultatem fundatam in situ, accommodans rate fluxum et valorem abscise |
 |
| - Habemus experientiam productivam uberem, fabrum professionalem, et amplam in-situm debugging et institutionis experientiam. Producimus super 3000 unitates per annum cum certa qualitate |
 |
| habemus professionalem debugging apparatu et inspectionem personas |
 |

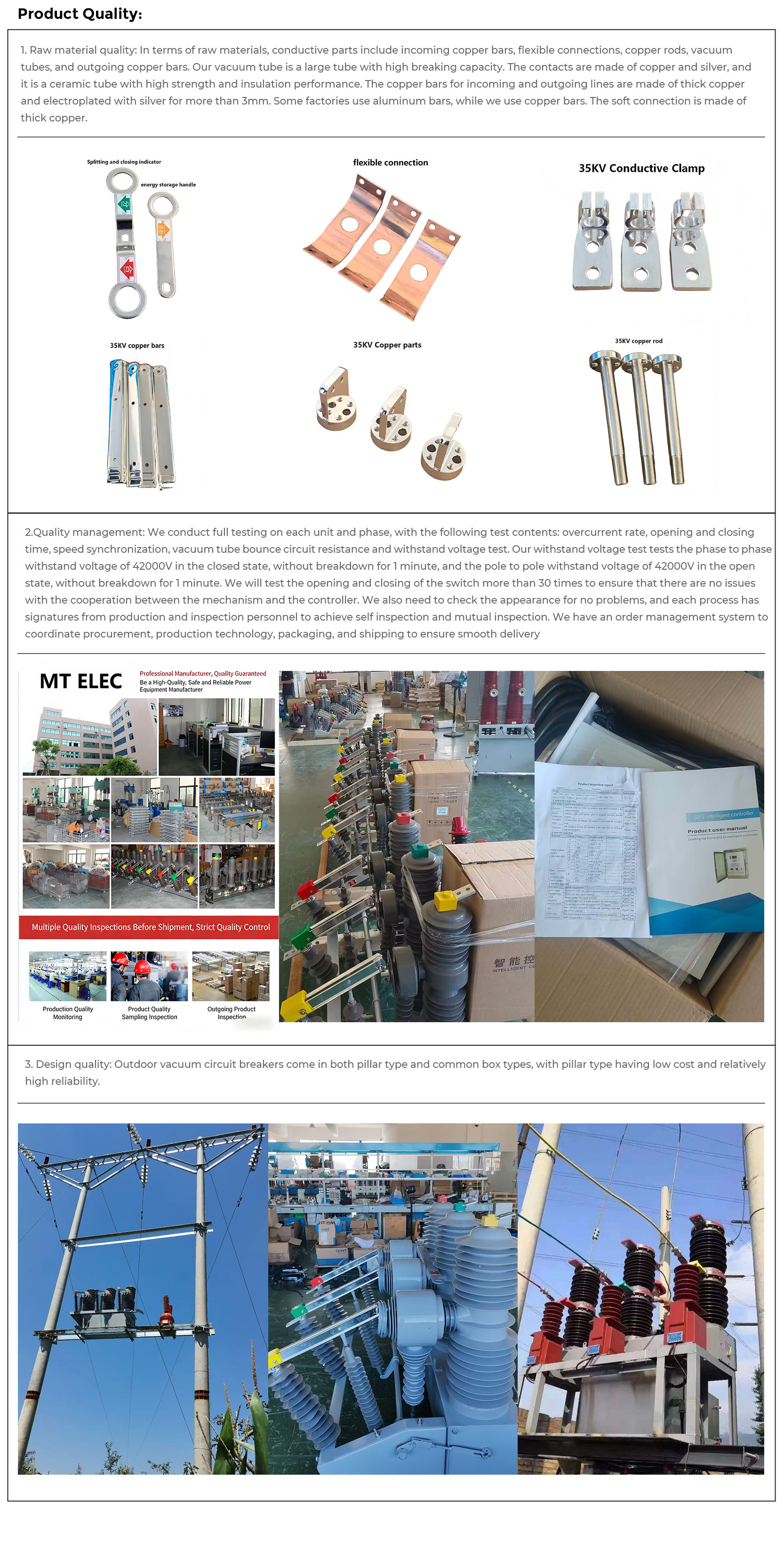

| Nostrum vacuum fistulae sunt magnae fistulae cum partibus conductivis e cupro |
| |
Ad translationem salutem obtinendam, fructus electrica nostri exportantur in cratibus ligneis aucti. Crates caloris curationem subeunt et ISPM-15 ferunt signum, ut celeris consuetudines alvi ferant. In consilio basi elevato operationem forklift faciliorem facit, cum collisio-absorbens ligamen internum efficit ut fructus integros perveniant. Crates exteriores omnes perspicue intitulati sunt et logisticis internationalibus signis obtemperant.
High-Voltage Switch Cable
High-Voltage Switch Cable
High-Voltage Switch Cable
10kV Ring Main Unit VCB
Photovoltaic Grid-Connected Cabinet Utilising ACB and MCCB
Power transmission successful
Box-typesubstation ACB VCB MCCB
Box-typesubstation ACB VCB MCCB
Box-typesubstation ACB VCB MCCB
Power transmission successful
35kV high-voltage switchgear successfully energized VCB
35kV Gas-Insulated Switchgear VCB
| Parameter Categoria | Specification | Dicta |
| Ratum Voltage | 12 kV | Standard for distribution networks |
| Ratum Current | 400A, 630A | Custom ratings available |
| Rated brevis Circuit Fractio Current | 16 kA, 20 kA, 25 kA | |
| Rated breve tempus sustine Current | 16 kA/4s, 20 kA/4s, 25 kA/4s | |
| Rated Pecco sustine Current | 40 kA, 50 kA, 63 kA . | |
| Rated Insulation Level | Power Frequency: 42 kV (1 min) / Lightning Impulse: 75 kV | |
| Mechanica vitae | 10,000 res | |
| Vita electrica | 10,000 res (at rated current) | Plena facultatem fractionis |
| Interpellare Medium | Vacuum | Signati tellus utrem |
| Mechanismus operating | Ver | Manual aut motorized |
| Imperium intentione | AC/DC 110V, 220V | Libitum 24V, 48V |
| Praesidium Degree | IP67 | Idoneum ad dura ambitus |
| Dimensiones (H×W×D) | 880 560 680 mm | Foedus design |
| Pondus | Proxime. 130 kg | Securus install |
| Ratio institutionem | Pole-ineditis | Usus velit |
| Ambiens Temperature | -40°C ad 55°C | Lata range operating |
| altitudo | ≤ (IV) m | Summus altitudo praesto versionem |
